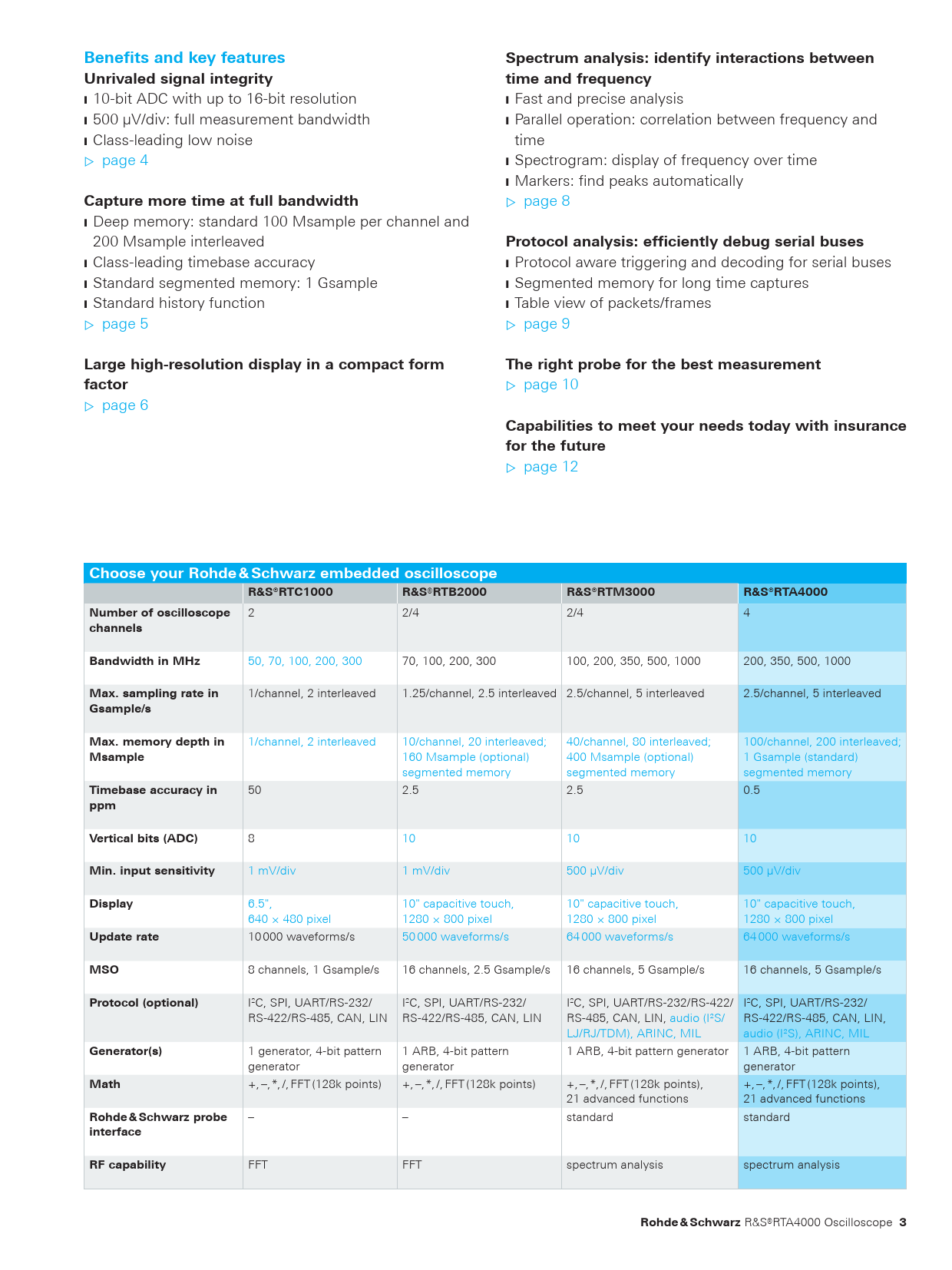

Benefits and key features. Spectrum analysis: identify interactions between. Unrivaled signal integrity. time and frequency
Text Version of Document
link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 9 link to page 9 link to page 9 link to page 9 link to page 9 link to page 10 link to page 10 link to page 13 link to page 13 link to page 13 link to page 4 link to page 4 link to page 4 link to page 4 link to page 4 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 7
Benefits and key features Spectrum analysis: identify interactions between Unrivaled signal integrity time and frequency
❙10-bit ADC with up to 16-bit resolution ❙Fast and precise analysis ❙500 µV/div: full measurement bandwidth ❙Parallel operation: correlation between frequency and ❙Class-leading low noise time ▷ page 4 ❙Spectrogram: display of frequency over time ❙Markers: find peaks automatically
Capture more time at full bandwidth
▷ page 8 ❙Deep memory: standard 100 Msample per channel and 200 Msample interleaved
Protocol analysis: efficiently debug serial buses
❙Class-leading timebase accuracy ❙Protocol aware triggering and decoding for serial buses ❙Standard segmented memory: 1 Gsample ❙Segmented memory for long time captures ❙Standard history function ❙Table view of packets/frames ▷ page 5 ▷ page 9
Large high-resolution display in a compact form The right probe for the best measurement factor
▷ page 10 ▷ page 6
Capabilities to meet your needs today with insurance for the future
▷ page 12
Choose your Rohde & Schwarz embedded oscilloscope R&S®RTC1000 R&S
®
RTB2000 R&S®RTM3000 R&S®RTA4000 Number of oscilloscope
2 2/4 2/4 4
channels Bandwidth in MHz
50, 70, 100, 200, 300 70, 100, 200, 300 100, 200, 350, 500, 1000 200, 350, 500, 1000
Max. sampling rate in
1/channel, 2 interleaved 1.25/channel, 2.5 interleaved 2.5/channel, 5 interleaved 2.5/channel, 5 interleaved
Gsample/s Max. memory depth in
1/channel, 2 interleaved 10/channel, 20 interleaved; 40/channel, 80 interleaved; 100/channel, 200 interleaved;
Msample
160 Msample (optional) 400 Msample (optional) 1 Gsample (standard) segmented memory segmented memory segmented memory
Timebase accuracy in
50 2.5 2.5 0.5
ppm Vertical bits (ADC)
8 10 10 10
Min. input sensitivity
1 mV/div 1 mV/div 500 µV/div 500 µV/div
Display
6.5", 10" capacitive touch, 10" capacitive touch, 10" capacitive touch, 640 × 480 pixel 1280 × 800 pixel 1280 × 800 pixel 1280 × 800 pixel
Update rate
10 000 waveforms/s 50 000 waveforms/s 64 000 waveforms/s 64 000 waveforms/s
MSO
8 channels, 1 Gsample/s 16 channels, 2.5 Gsample/s 16 channels, 5 Gsample/s 16 channels, 5 Gsample/s
Protocol (optional)
I2C, SPI, UART/RS-232/ I2C, SPI, UART/RS-232/ I2C, SPI, UART/RS-232/RS-422/ I2C, SPI, UART/RS-232/ RS-422/RS-485, CAN, LIN RS-422/RS-485, CAN, LIN RS-485, CAN, LIN, audio (I²S/ RS-422/RS-485, CAN, LIN, LJ/RJ/TDM), ARINC, MIL audio (I²S), ARINC, MIL
Generator(s)
1 generator, 4-bit pattern 1 ARB, 4-bit pattern 1 ARB, 4-bit pattern generator 1 ARB, 4-bit pattern generator generator generator
Math
+, –, *, /, FFT (128k points) +, –, *, /, FFT (128k points) +, –, *, /, FFT (128k points), +, –, *, /, FFT (128k points), 21 advanced functions 21 advanced functions
Rohde & Schwarz probe
– – standard standard
interface RF capability
FFT FFT spectrum analysis spectrum analysis
Rohde & Schwarz
R&S®RTA4000 Oscilloscope
3
