10.1. high-resolution capacitive touchscreen with gesture support. Documentation of results at the push of a button
Text Version of Document

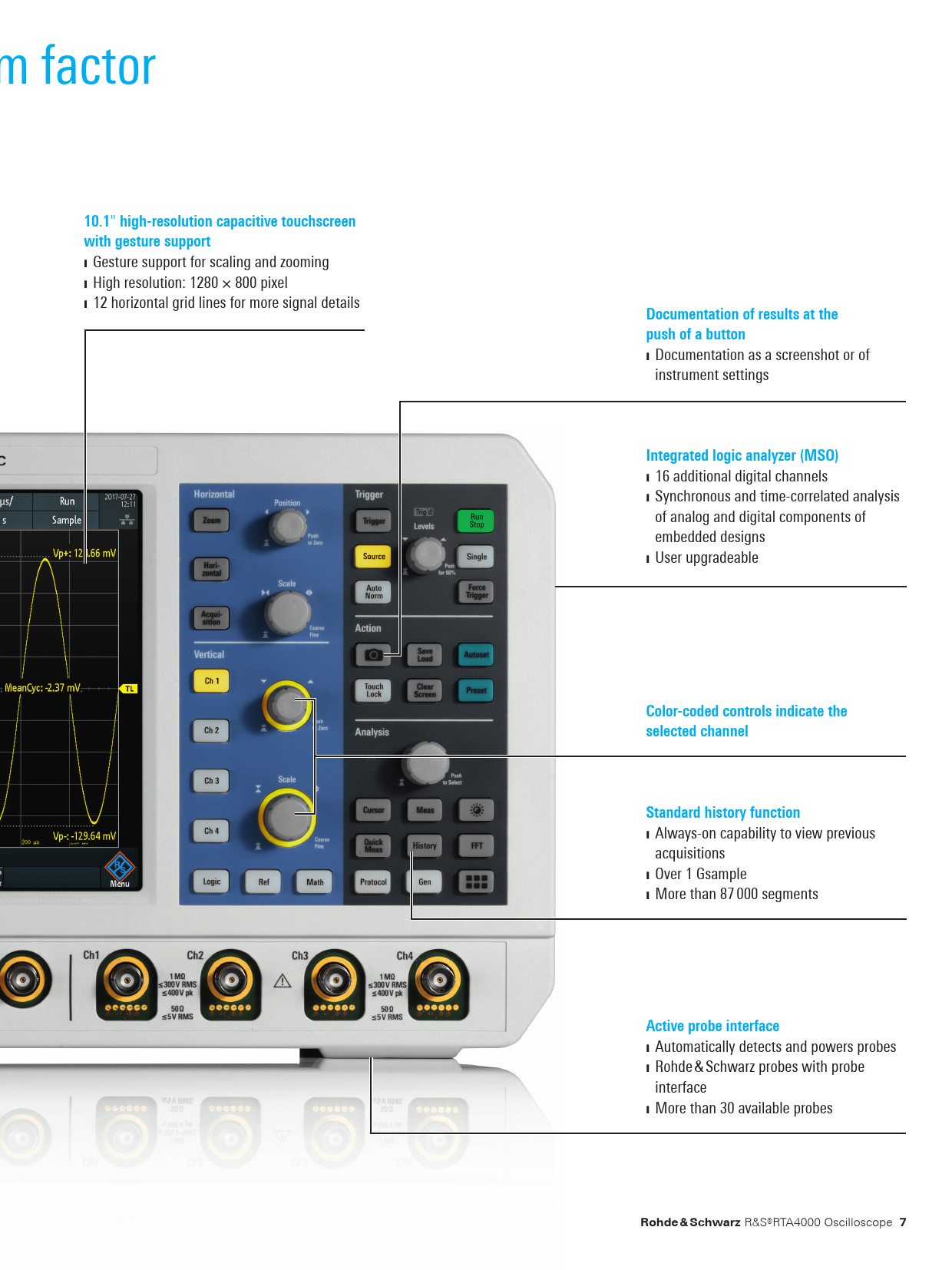

Large high-resolution display in a compact form factor
10.1
"
high-resolution capacitive touchscreen with gesture support
❙ Gesture support for scaling and zooming ❙ High resolution: 1280 × 800 pixel ❙ 12 horizontal grid lines for more signal details
Documentation of results at the push of a button
❙ Documentation as a screenshot or of instrument settings
Integrated logic analyzer (MSO)
❙ 16 additional digital channels ❙ Synchronous and time-correlated analysis of analog and digital components of embedded designs ❙ User upgradeable
Color-coded controls indicate the selected channel Standard history function
❙ Always-on capability to view previous acquisitions ❙ Over 1 Gsample ❙ More than 87 000 segments
Active probe interface
❙ Automatically detects and powers probes ❙ Rohde & Schwarz probes with probe interface ❙ More than 30 available probes
Rohde & Schwarz
R&S®RTA4000 Oscilloscope
7
RTA4000_bro_en_5215-1776-12_v0303.indd 7 01.03.2018 11:02:03
