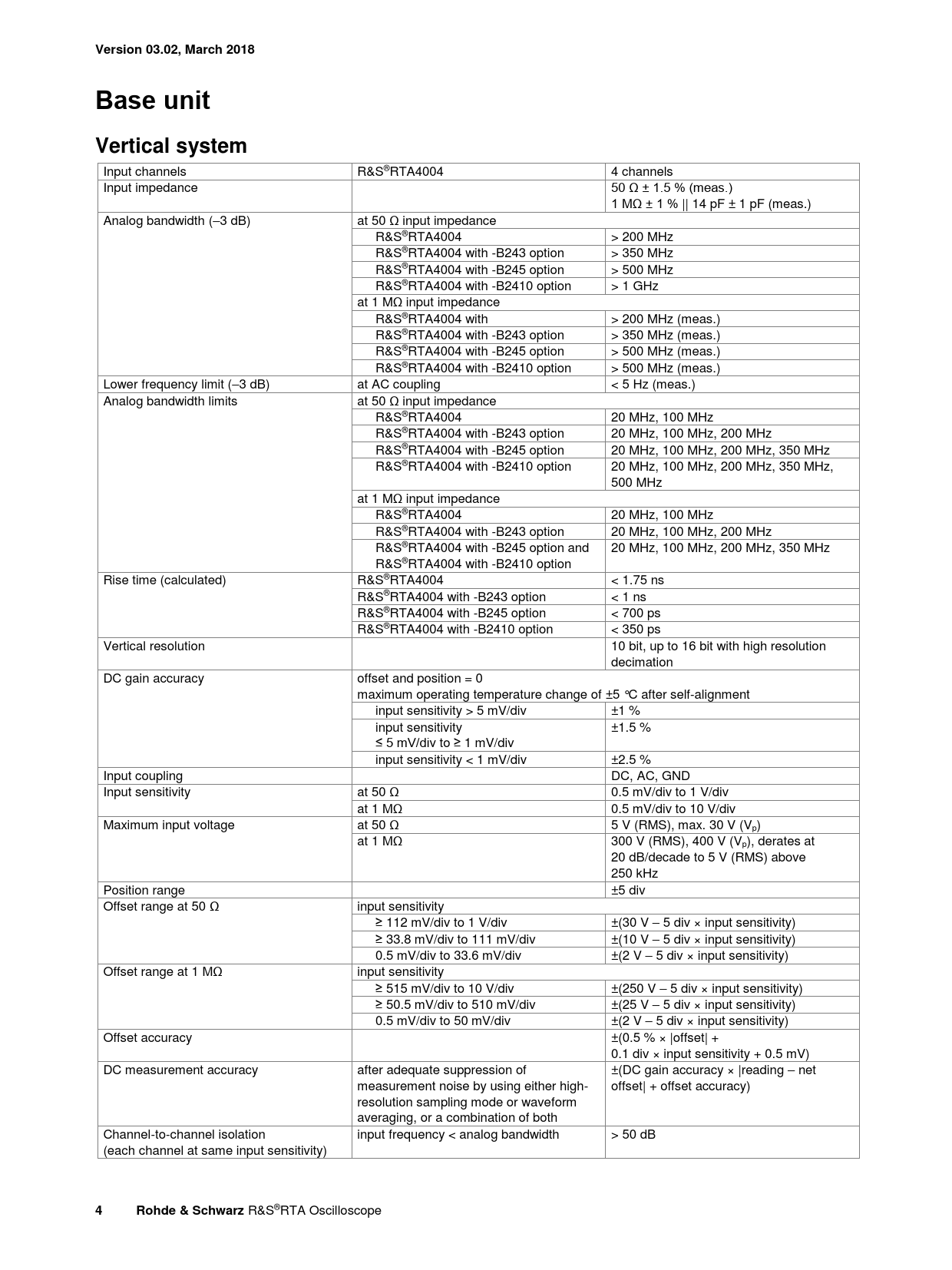

Version 03.02, March 2018 Base unit Vertical system
Input channels R&S®RTA4004 4 channels Input impedance 50 Ω ± 1.5 % (meas.) 1 MΩ ± 1 % || 14 pF ± 1 pF (meas.) Analog bandwidth (–3 dB) at 50 Ω input impedance R&S®RTA4004 > 200 MHz R&S®RTA4004 with -B243 option > 350 MHz R&S®RTA4004 with -B245 option > 500 MHz R&S®RTA4004 with -B2410 option > 1 GHz at 1 MΩ input impedance R&S®RTA4004 with > 200 MHz (meas.) R&S®RTA4004 with -B243 option > 350 MHz (meas.) R&S®RTA4004 with -B245 option > 500 MHz (meas.) R&S®RTA4004 with -B2410 option > 500 MHz (meas.) Lower frequency limit (–3 dB) at AC coupling < 5 Hz (meas.) Analog bandwidth limits at 50 Ω input impedance R&S®RTA4004 20 MHz, 100 MHz R&S®RTA4004 with -B243 option 20 MHz, 100 MHz, 200 MHz R&S®RTA4004 with -B245 option 20 MHz, 100 MHz, 200 MHz, 350 MHz R&S®RTA4004 with -B2410 option 20 MHz, 100 MHz, 200 MHz, 350 MHz, 500 MHz at 1 MΩ input impedance R&S®RTA4004 20 MHz, 100 MHz R&S®RTA4004 with -B243 option 20 MHz, 100 MHz, 200 MHz R&S®RTA4004 with -B245 option and 20 MHz, 100 MHz, 200 MHz, 350 MHz R&S®RTA4004 with -B2410 option Rise time (calculated) R&S®RTA4004 < 1.75 ns R&S®RTA4004 with -B243 option < 1 ns R&S®RTA4004 with -B245 option < 700 ps R&S®RTA4004 with -B2410 option < 350 ps Vertical resolution 10 bit, up to 16 bit with high resolution decimation DC gain accuracy offset and position = 0 maximum operating temperature change of ±5 °C after self-alignment input sensitivity > 5 mV/div ±1 % input sensitivity ±1.5 % ≤ 5 mV/div to ≥ 1 mV/div input sensitivity < 1 mV/div ±2.5 % Input coupling DC, AC, GND Input sensitivity at 50 Ω 0.5 mV/div to 1 V/div at 1 MΩ 0.5 mV/div to 10 V/div Maximum input voltage at 50 Ω 5 V (RMS), max. 30 V (Vp) at 1 MΩ 300 V (RMS), 400 V (Vp), derates at 20 dB/decade to 5 V (RMS) above 250 kHz Position range ±5 div Offset range at 50 Ω input sensitivity ≥ 112 mV/div to 1 V/div ±(30 V – 5 div × input sensitivity) ≥ 33.8 mV/div to 111 mV/div ±(10 V – 5 div × input sensitivity) 0.5 mV/div to 33.6 mV/div ±(2 V – 5 div × input sensitivity) Offset range at 1 MΩ input sensitivity ≥ 515 mV/div to 10 V/div ±(250 V – 5 div × input sensitivity) ≥ 50.5 mV/div to 510 mV/div ±(25 V – 5 div × input sensitivity) 0.5 mV/div to 50 mV/div ±(2 V – 5 div × input sensitivity) Offset accuracy ±(0.5 % × |offset| + 0.1 div × input sensitivity + 0.5 mV) DC measurement accuracy after adequate suppression of ±(DC gain accuracy × |reading – net measurement noise by using either high- offset| + offset accuracy) resolution sampling mode or waveform averaging, or a combination of both Channel-to-channel isolation input frequency < analog bandwidth > 50 dB (each channel at same input sensitivity)
4 Rohde & Schwarz
R&S®RTA Oscilloscope
Input channels R&S®RTA4004 4 channels Input impedance 50 Ω ± 1.5 % (meas.) 1 MΩ ± 1 % || 14 pF ± 1 pF (meas.) Analog bandwidth (–3 dB) at 50 Ω input impedance R&S®RTA4004 > 200 MHz R&S®RTA4004 with -B243 option > 350 MHz R&S®RTA4004 with -B245 option > 500 MHz R&S®RTA4004 with -B2410 option > 1 GHz at 1 MΩ input impedance R&S®RTA4004 with > 200 MHz (meas.) R&S®RTA4004 with -B243 option > 350 MHz (meas.) R&S®RTA4004 with -B245 option > 500 MHz (meas.) R&S®RTA4004 with -B2410 option > 500 MHz (meas.) Lower frequency limit (–3 dB) at AC coupling < 5 Hz (meas.) Analog bandwidth limits at 50 Ω input impedance R&S®RTA4004 20 MHz, 100 MHz R&S®RTA4004 with -B243 option 20 MHz, 100 MHz, 200 MHz R&S®RTA4004 with -B245 option 20 MHz, 100 MHz, 200 MHz, 350 MHz R&S®RTA4004 with -B2410 option 20 MHz, 100 MHz, 200 MHz, 350 MHz, 500 MHz at 1 MΩ input impedance R&S®RTA4004 20 MHz, 100 MHz R&S®RTA4004 with -B243 option 20 MHz, 100 MHz, 200 MHz R&S®RTA4004 with -B245 option and 20 MHz, 100 MHz, 200 MHz, 350 MHz R&S®RTA4004 with -B2410 option Rise time (calculated) R&S®RTA4004 < 1.75 ns R&S®RTA4004 with -B243 option < 1 ns R&S®RTA4004 with -B245 option < 700 ps R&S®RTA4004 with -B2410 option < 350 ps Vertical resolution 10 bit, up to 16 bit with high resolution decimation DC gain accuracy offset and position = 0 maximum operating temperature change of ±5 °C after self-alignment input sensitivity > 5 mV/div ±1 % input sensitivity ±1.5 % ≤ 5 mV/div to ≥ 1 mV/div input sensitivity < 1 mV/div ±2.5 % Input coupling DC, AC, GND Input sensitivity at 50 Ω 0.5 mV/div to 1 V/div at 1 MΩ 0.5 mV/div to 10 V/div Maximum input voltage at 50 Ω 5 V (RMS), max. 30 V (Vp) at 1 MΩ 300 V (RMS), 400 V (Vp), derates at 20 dB/decade to 5 V (RMS) above 250 kHz Position range ±5 div Offset range at 50 Ω input sensitivity ≥ 112 mV/div to 1 V/div ±(30 V – 5 div × input sensitivity) ≥ 33.8 mV/div to 111 mV/div ±(10 V – 5 div × input sensitivity) 0.5 mV/div to 33.6 mV/div ±(2 V – 5 div × input sensitivity) Offset range at 1 MΩ input sensitivity ≥ 515 mV/div to 10 V/div ±(250 V – 5 div × input sensitivity) ≥ 50.5 mV/div to 510 mV/div ±(25 V – 5 div × input sensitivity) 0.5 mV/div to 50 mV/div ±(2 V – 5 div × input sensitivity) Offset accuracy ±(0.5 % × |offset| + 0.1 div × input sensitivity + 0.5 mV) DC measurement accuracy after adequate suppression of ±(DC gain accuracy × |reading – net measurement noise by using either high- offset| + offset accuracy) resolution sampling mode or waveform averaging, or a combination of both Channel-to-channel isolation input frequency < analog bandwidth > 50 dB (each channel at same input sensitivity)
4 Rohde & Schwarz
R&S®RTA Oscilloscope
