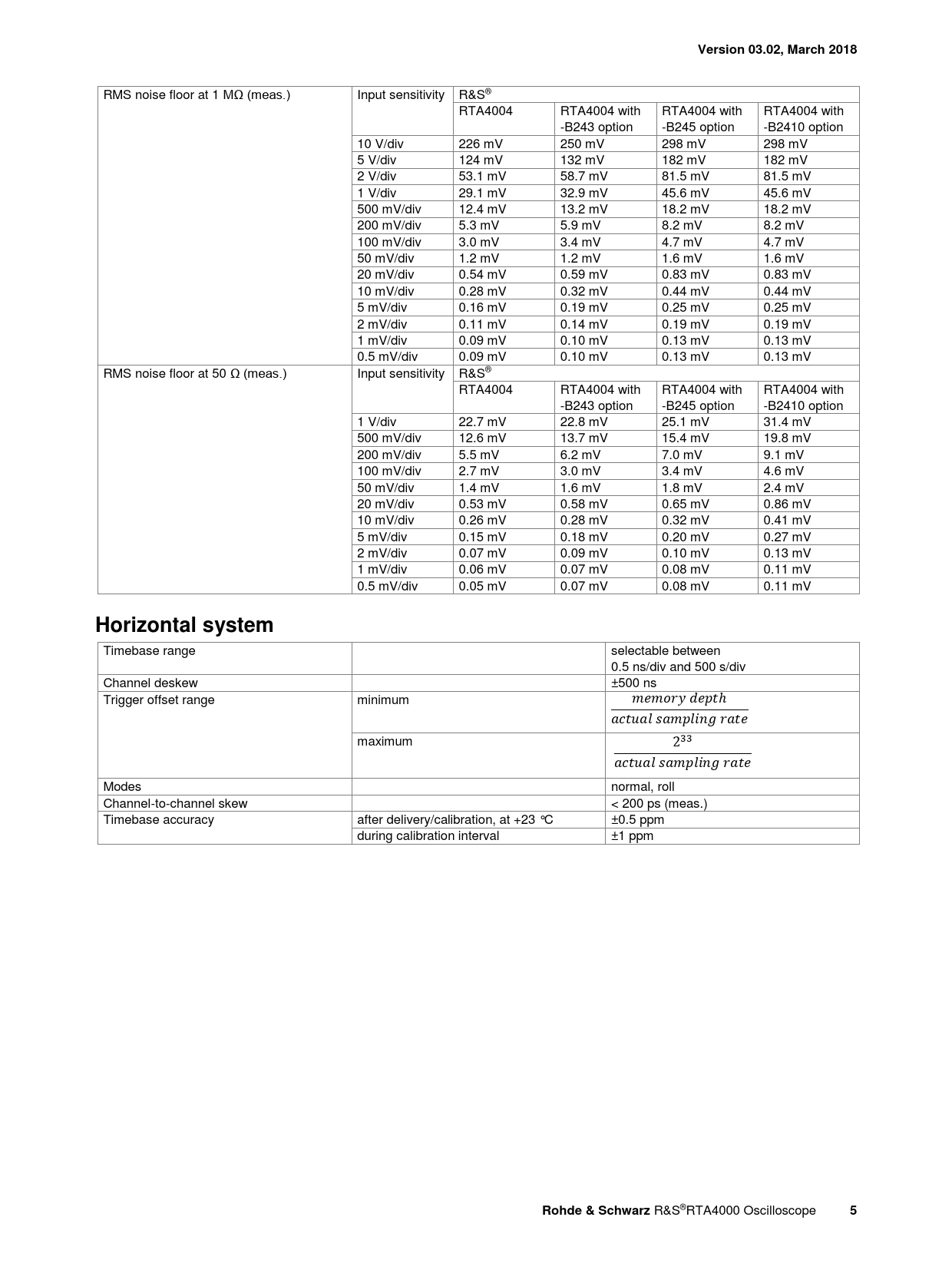

Datasheet RTA4000 oscilloscope (Rohde&Schwarz) - 5

Version 03.02, March 2018
RMS noise floor at 1 MΩ (meas.) Input sensitivity R&S® RTA4004 RTA4004 with RTA4004 with RTA4004 with -B243 option -B245 option -B2410 option 10 V/div 226 mV 250 mV 298 mV 298 mV 5 V/div 124 mV 132 mV 182 mV 182 mV 2 V/div 53.1 mV 58.7 mV 81.5 mV 81.5 mV 1 V/div 29.1 mV 32.9 mV 45.6 mV 45.6 mV 500 mV/div 12.4 mV 13.2 mV 18.2 mV 18.2 mV 200 mV/div 5.3 mV 5.9 mV 8.2 mV 8.2 mV 100 mV/div 3.0 mV 3.4 mV 4.7 mV 4.7 mV 50 mV/div 1.2 mV 1.2 mV 1.6 mV 1.6 mV 20 mV/div 0.54 mV 0.59 mV 0.83 mV 0.83 mV 10 mV/div 0.28 mV 0.32 mV 0.44 mV 0.44 mV 5 mV/div 0.16 mV 0.19 mV 0.25 mV 0.25 mV 2 mV/div 0.11 mV 0.14 mV 0.19 mV 0.19 mV 1 mV/div 0.09 mV 0.10 mV 0.13 mV 0.13 mV 0.5 mV/div 0.09 mV 0.10 mV 0.13 mV 0.13 mV RMS noise floor at 50 Ω (meas.) Input sensitivity R&S® RTA4004 RTA4004 with RTA4004 with RTA4004 with -B243 option -B245 option -B2410 option 1 V/div 22.7 mV 22.8 mV 25.1 mV 31.4 mV 500 mV/div 12.6 mV 13.7 mV 15.4 mV 19.8 mV 200 mV/div 5.5 mV 6.2 mV 7.0 mV 9.1 mV 100 mV/div 2.7 mV 3.0 mV 3.4 mV 4.6 mV 50 mV/div 1.4 mV 1.6 mV 1.8 mV 2.4 mV 20 mV/div 0.53 mV 0.58 mV 0.65 mV 0.86 mV 10 mV/div 0.26 mV 0.28 mV 0.32 mV 0.41 mV 5 mV/div 0.15 mV 0.18 mV 0.20 mV 0.27 mV 2 mV/div 0.07 mV 0.09 mV 0.10 mV 0.13 mV 1 mV/div 0.06 mV 0.07 mV 0.08 mV 0.11 mV 0.5 mV/div 0.05 mV 0.07 mV 0.08 mV 0.11 mV
Horizontal system
Timebase range selectable between 0.5 ns/div and 500 s/div Channel deskew ±500 ns Trigger offset range minimum 𝑚𝑒𝑚𝑜𝑟𝑦 𝑑𝑒𝑝𝑡ℎ 𝑎𝑐𝑡𝑢𝑎𝑙 𝑠𝑎𝑚𝑝𝑙𝑖𝑛𝑔 𝑟𝑎𝑡𝑒 maximum 233 𝑎𝑐𝑡𝑢𝑎𝑙 𝑠𝑎𝑚𝑝𝑙𝑖𝑛𝑔 𝑟𝑎𝑡𝑒 Modes normal, roll Channel-to-channel skew < 200 ps (meas.) Timebase accuracy after delivery/calibration, at +23 °C ±0.5 ppm during calibration interval ±1 ppm
Rohde & Schwarz
R&S®RTA4000 Oscilloscope
5
