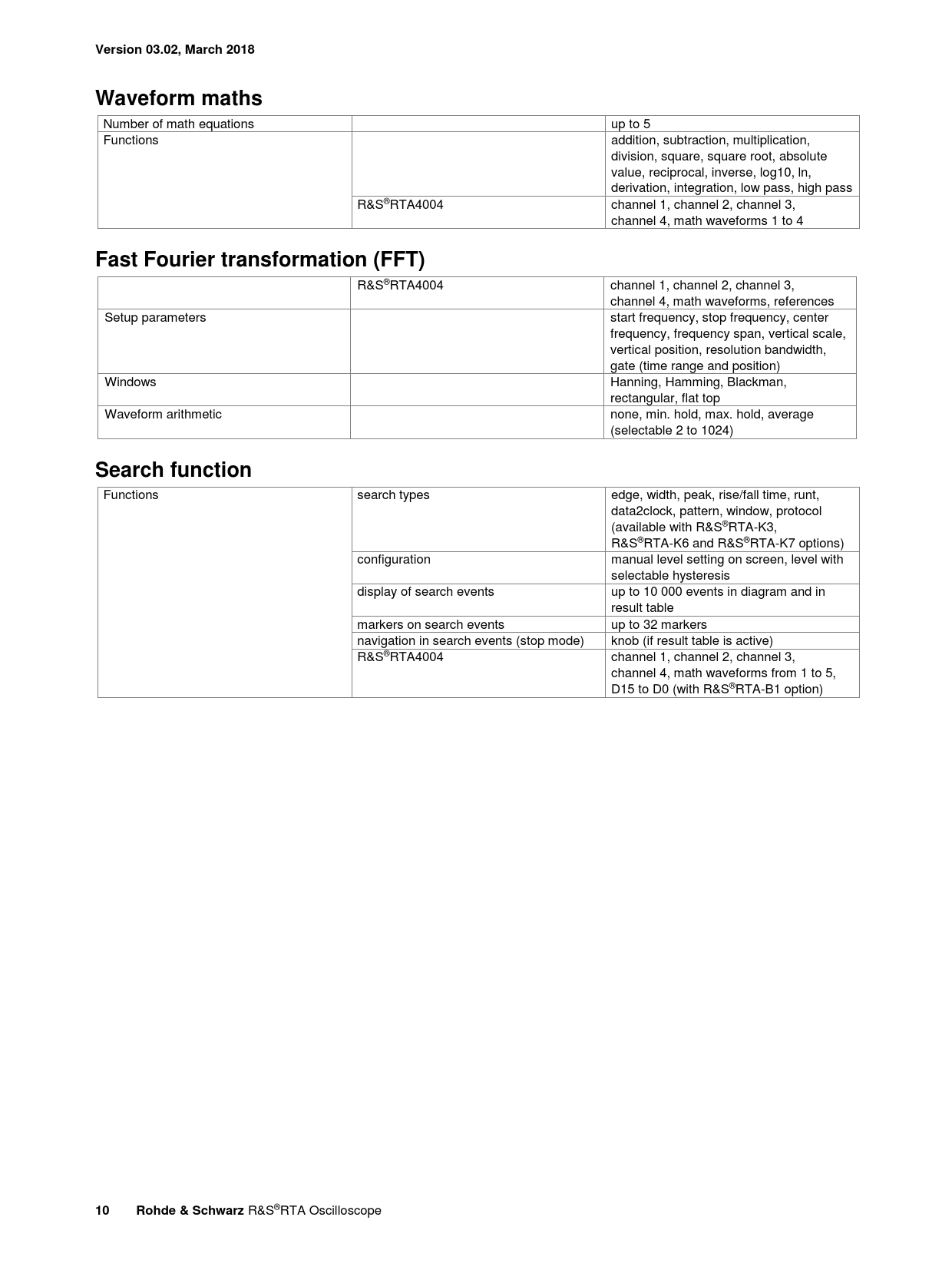

Version 03.02, March 2018 Waveform maths
Number of math equations up to 5 Functions addition, subtraction, multiplication, division, square, square root, absolute value, reciprocal, inverse, log10, ln, derivation, integration, low pass, high pass R&S®RTA4004 channel 1, channel 2, channel 3, channel 4, math waveforms 1 to 4
Fast Fourier transformation (FFT)
R&S®RTA4004 channel 1, channel 2, channel 3, channel 4, math waveforms, references Setup parameters start frequency, stop frequency, center frequency, frequency span, vertical scale, vertical position, resolution bandwidth, gate (time range and position) Windows Hanning, Hamming, Blackman, rectangular, flat top Waveform arithmetic none, min. hold, max. hold, average (selectable 2 to 1024)
Search function
Functions search types edge, width, peak, rise/fall time, runt, data2clock, pattern, window, protocol (available with R&S®RTA-K3, R&S®RTA-K6 and R&S®RTA-K7 options) configuration manual level setting on screen, level with selectable hysteresis display of search events up to 10 000 events in diagram and in result table markers on search events up to 32 markers navigation in search events (stop mode) knob (if result table is active) R&S®RTA4004 channel 1, channel 2, channel 3, channel 4, math waveforms from 1 to 5, D15 to D0 (with R&S®RTA-B1 option)
10 Rohde & Schwarz
