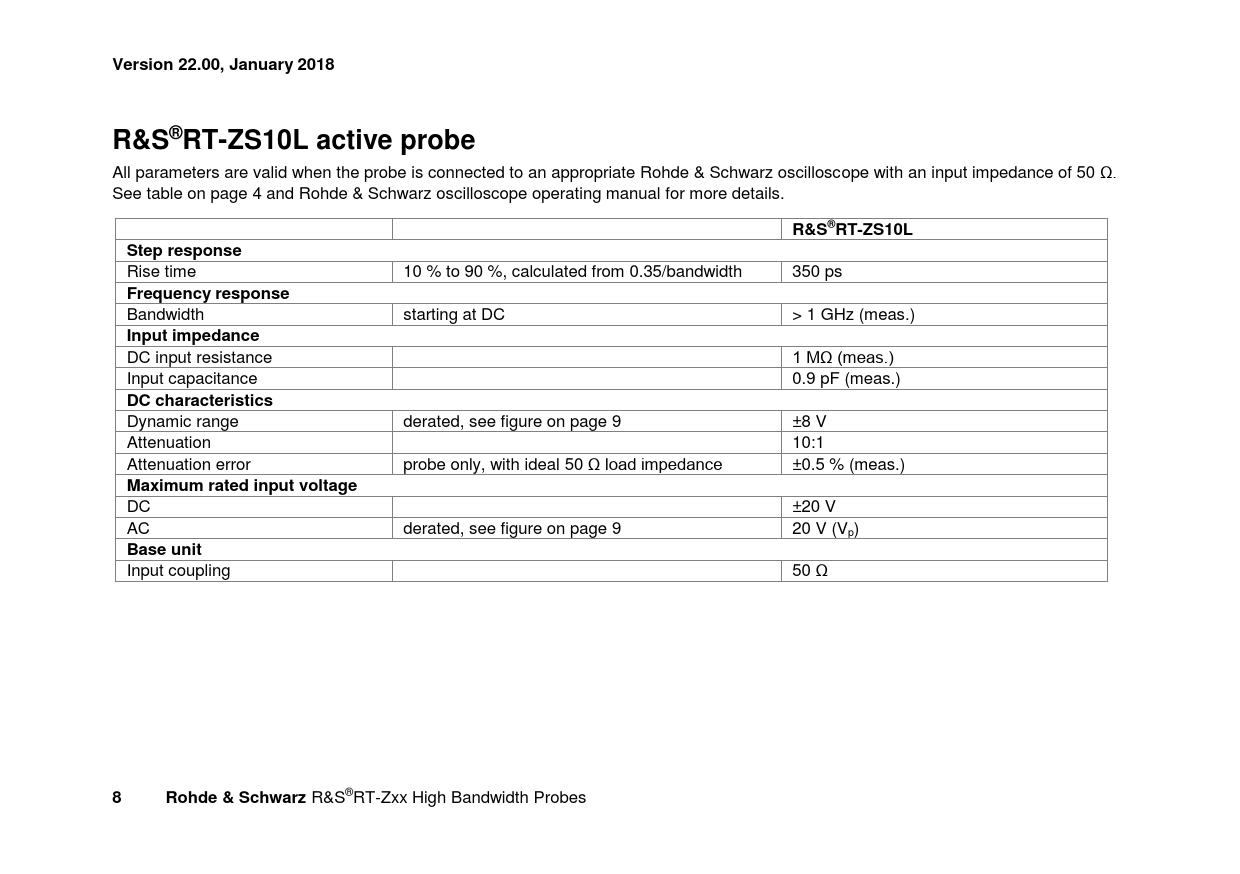

Version 22.00, January 2018. R&S®RT-ZS10L active probe. R&S®RT-ZS10L. Step response. Frequency response. Input impedance
Text Version of Document
link to page 4 link to page 9 link to page 9
Version 22.00, January 2018 R&S®RT-ZS10L active probe
All parameters are valid when the probe is connected to an appropriate Rohde & Schwarz oscilloscope with an input impedance of 50 Ω. See table on page 4 and Rohde & Schwarz oscilloscope operating manual for more details.
R&S®RT-ZS10L Step response
Rise time 10 % to 90 %, calculated from 0.35/bandwidth 350 ps
Frequency response
Bandwidth starting at DC > 1 GHz (meas.)
Input impedance
DC input resistance 1 MΩ (meas.) Input capacitance 0.9 pF (meas.)
DC characteristics
Dynamic range derated, see figure on page 9 ±8 V Attenuation 10:1 Attenuation error probe only, with ideal 50 Ω load impedance ±0.5 % (meas.)
Maximum rated input voltage
DC ±20 V AC derated, see figure on page 9 20 V (Vp)
Base unit
Input coupling 50 Ω
