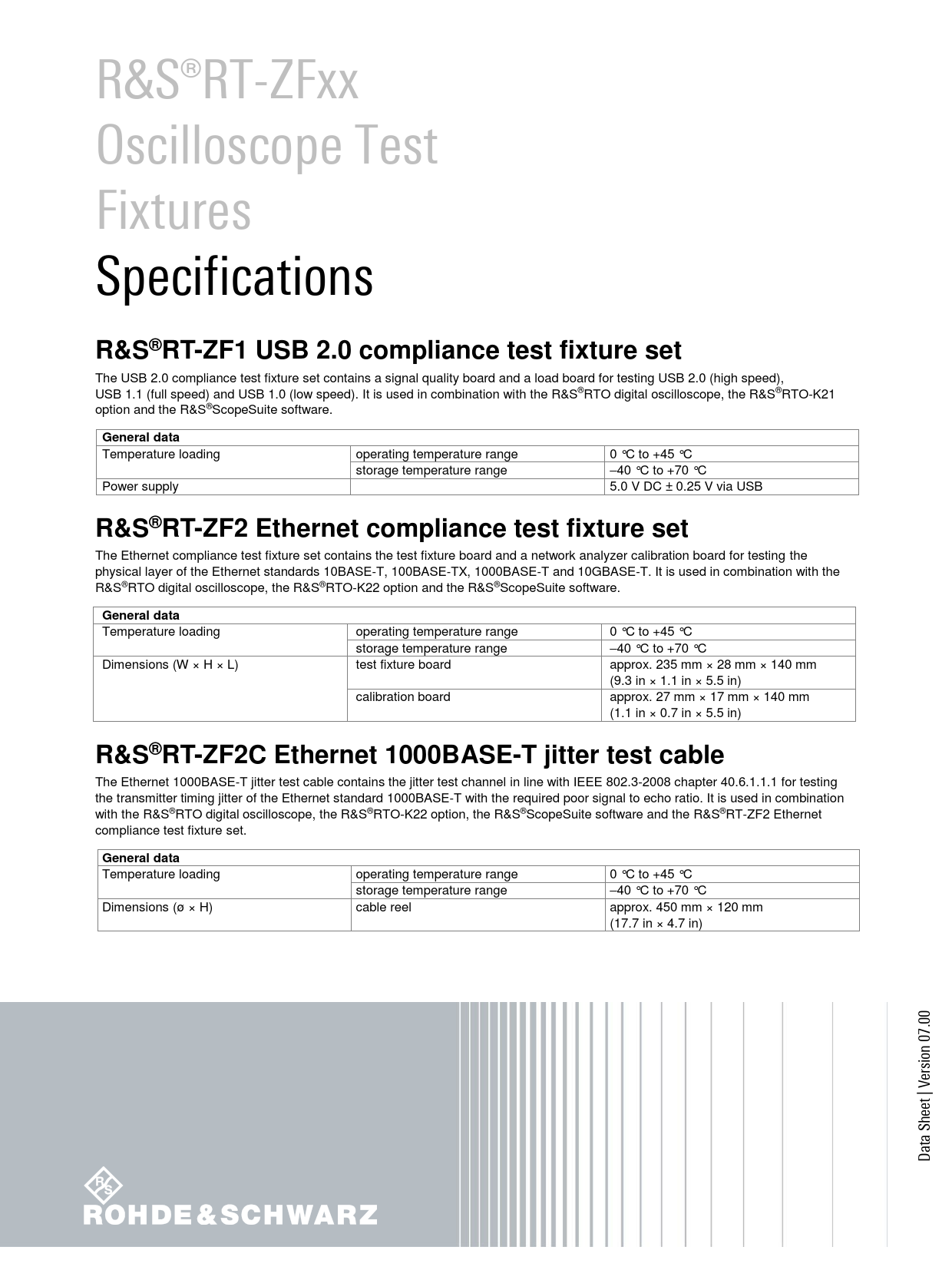

Datasheet RT-ZFxx Oscilloscope Test Fixtures (Rohde&Schwarz)

R&S®RT -ZFxx Oscillosc ope Test Fixture s Specifica tions
R&S®RT-ZF1 USB 2.0 compliance test fixture set
The USB 2.0 compliance test fixture set contains a signal quality board and a load board for testing USB 2.0 (high speed), USB 1.1 (full speed) and USB 1.0 (low speed). It is used in combination with the R&S®RTO digital oscilloscope, the R&S®RTO-K21 option and the R&S®ScopeSuite software.
General data
Temperature loading operating temperature range 0 °C to +45 °C storage temperature range –40 °C to +70 °C Power supply 5.0 V DC ± 0.25 V via USB
R&S®RT-ZF2 Ethernet compliance test fixture set
The Ethernet compliance test fixture set contains the test fixture board and a network analyzer calibration board for testing the physical layer of the Ethernet standards 10BASE-T, 100BASE-TX, 1000BASE-T and 10GBASE-T. It is used in combination with the R&S®RTO digital oscilloscope, the R&S®RTO-K22 option and the R&S®ScopeSuite software.
General data
Temperature loading operating temperature range 0 °C to +45 °C storage temperature range –40 °C to +70 °C Dimensions (W × H × L) test fixture board approx. 235 mm × 28 mm × 140 mm (9.3 in × 1.1 in × 5.5 in) calibration board approx. 27 mm × 17 mm × 140 mm (1.1 in × 0.7 in × 5.5 in)
R&S®RT-ZF2C Ethernet 1000BASE-T jitter test cable
The Ethernet 1000BASE-T jitter test cable contains the jitter test channel in line with IEEE 802.3-2008 chapter 40.6.1.1.1 for testing the transmitter timing jitter of the Ethernet standard 1000BASE-T with the required poor signal to echo ratio. It is used in combination with the R&S®RTO digital oscilloscope, the R&S®RTO-K22 option, the R&S®ScopeSuite software and the R&S®RT-ZF2 Ethernet compliance test fixture set.
General data
Temperature loading operating temperature range 0 °C to +45 °C storage temperature range –40 °C to +70 °C Dimensions (ø × H) cable reel approx. 450 mm × 120 mm (17.7 in × 4.7 in) .00 07 rsion Ve t | hee S ata D
