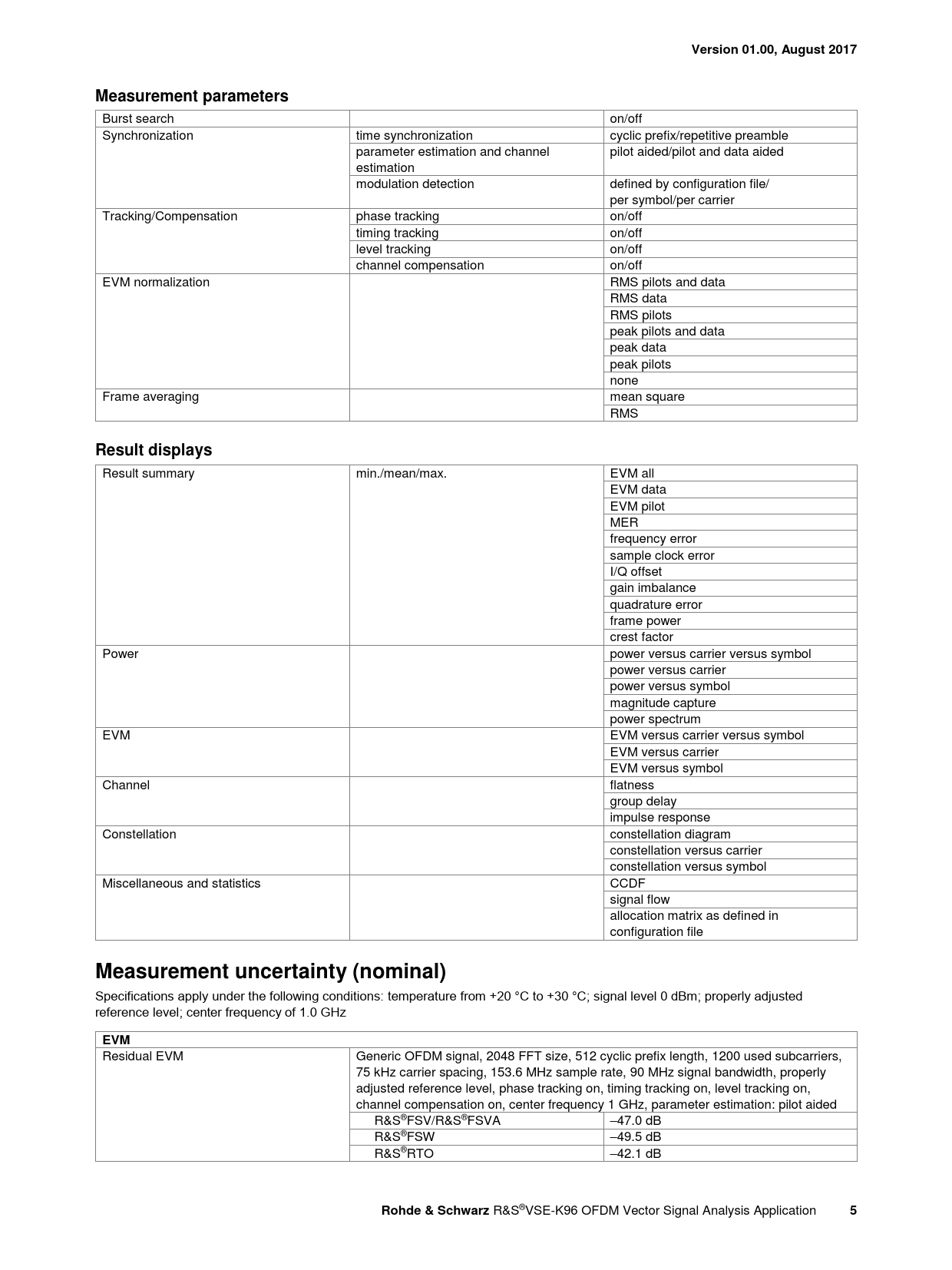

Version 01.00, August 2017 Measurement parameters
Burst search on/off Synchronization time synchronization cyclic prefix/repetitive preamble parameter estimation and channel pilot aided/pilot and data aided estimation modulation detection defined by configuration file/ per symbol/per carrier Tracking/Compensation phase tracking on/off timing tracking on/off level tracking on/off channel compensation on/off EVM normalization RMS pilots and data RMS data RMS pilots peak pilots and data peak data peak pilots none Frame averaging mean square RMS
Result displays
Result summary min./mean/max. EVM all EVM data EVM pilot MER frequency error sample clock error I/Q offset gain imbalance quadrature error frame power crest factor Power power versus carrier versus symbol power versus carrier power versus symbol magnitude capture power spectrum EVM EVM versus carrier versus symbol EVM versus carrier EVM versus symbol Channel flatness group delay impulse response Constellation constellation diagram constellation versus carrier constellation versus symbol Miscellaneous and statistics CCDF signal flow allocation matrix as defined in configuration file
Measurement uncertainty (nominal)
Specifications apply under the following conditions: temperature from +20 °C to +30 °C; signal level 0 dBm; properly adjusted reference level; center frequency of 1.0 GHz
EVM
Residual EVM Generic OFDM signal, 2048 FFT size, 512 cyclic prefix length, 1200 used subcarriers, 75 kHz carrier spacing, 153.6 MHz sample rate, 90 MHz signal bandwidth, properly adjusted reference level, phase tracking on, timing tracking on, level tracking on, channel compensation on, center frequency 1 GHz, parameter estimation: pilot aided R&S®FSV/R&S®FSVA –47.0 dB R&S®FSW –49.5 dB R&S®RTO –42.1 dB
Rohde & Schwarz
R&S®VSE-K96 OFDM Vector Signal Analysis Application
5
