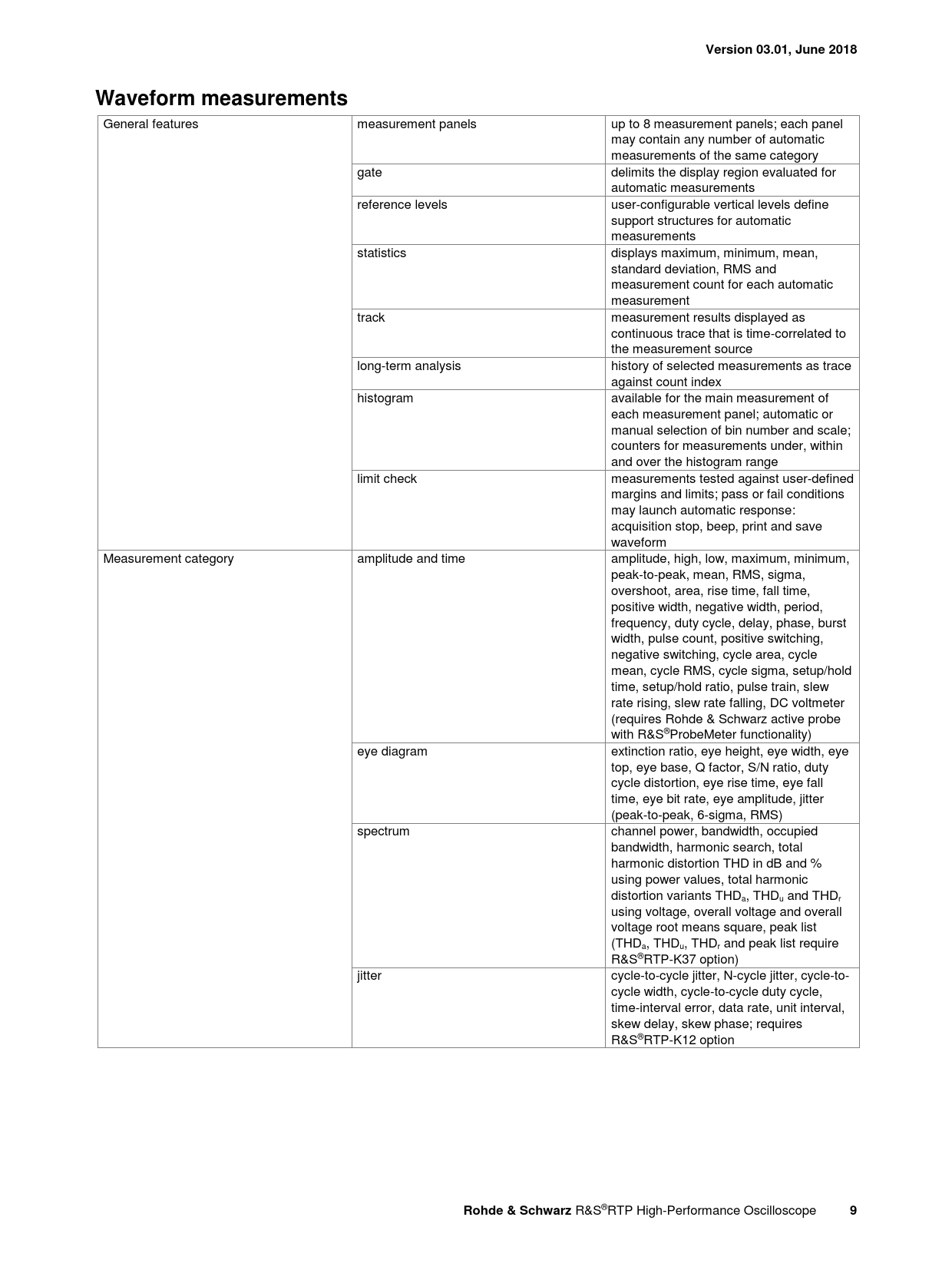

Version 03.01, June 2018 Waveform measurements
General features measurement panels up to 8 measurement panels; each panel may contain any number of automatic measurements of the same category gate delimits the display region evaluated for automatic measurements reference levels user-configurable vertical levels define support structures for automatic measurements statistics displays maximum, minimum, mean, standard deviation, RMS and measurement count for each automatic measurement track measurement results displayed as continuous trace that is time-correlated to the measurement source long-term analysis history of selected measurements as trace against count index histogram available for the main measurement of each measurement panel; automatic or manual selection of bin number and scale; counters for measurements under, within and over the histogram range limit check measurements tested against user-defined margins and limits; pass or fail conditions may launch automatic response: acquisition stop, beep, print and save waveform Measurement category amplitude and time amplitude, high, low, maximum, minimum, peak-to-peak, mean, RMS, sigma, overshoot, area, rise time, fall time, positive width, negative width, period, frequency, duty cycle, delay, phase, burst width, pulse count, positive switching, negative switching, cycle area, cycle mean, cycle RMS, cycle sigma, setup/hold time, setup/hold ratio, pulse train, slew rate rising, slew rate falling, DC voltmeter (requires Rohde & Schwarz active probe with R&S®ProbeMeter functionality) eye diagram extinction ratio, eye height, eye width, eye top, eye base, Q factor, S/N ratio, duty cycle distortion, eye rise time, eye fall time, eye bit rate, eye amplitude, jitter (peak-to-peak, 6-sigma, RMS) spectrum channel power, bandwidth, occupied bandwidth, harmonic search, total harmonic distortion THD in dB and % using power values, total harmonic distortion variants THDa, THDu and THDr using voltage, overall voltage and overall voltage root means square, peak list (THDa, THDu, THDr and peak list require R&S®RTP-K37 option) jitter cycle-to-cycle jitter, N-cycle jitter, cycle-to- cycle width, cycle-to-cycle duty cycle, time-interval error, data rate, unit interval, skew delay, skew phase; requires R&S®RTP-K12 option
