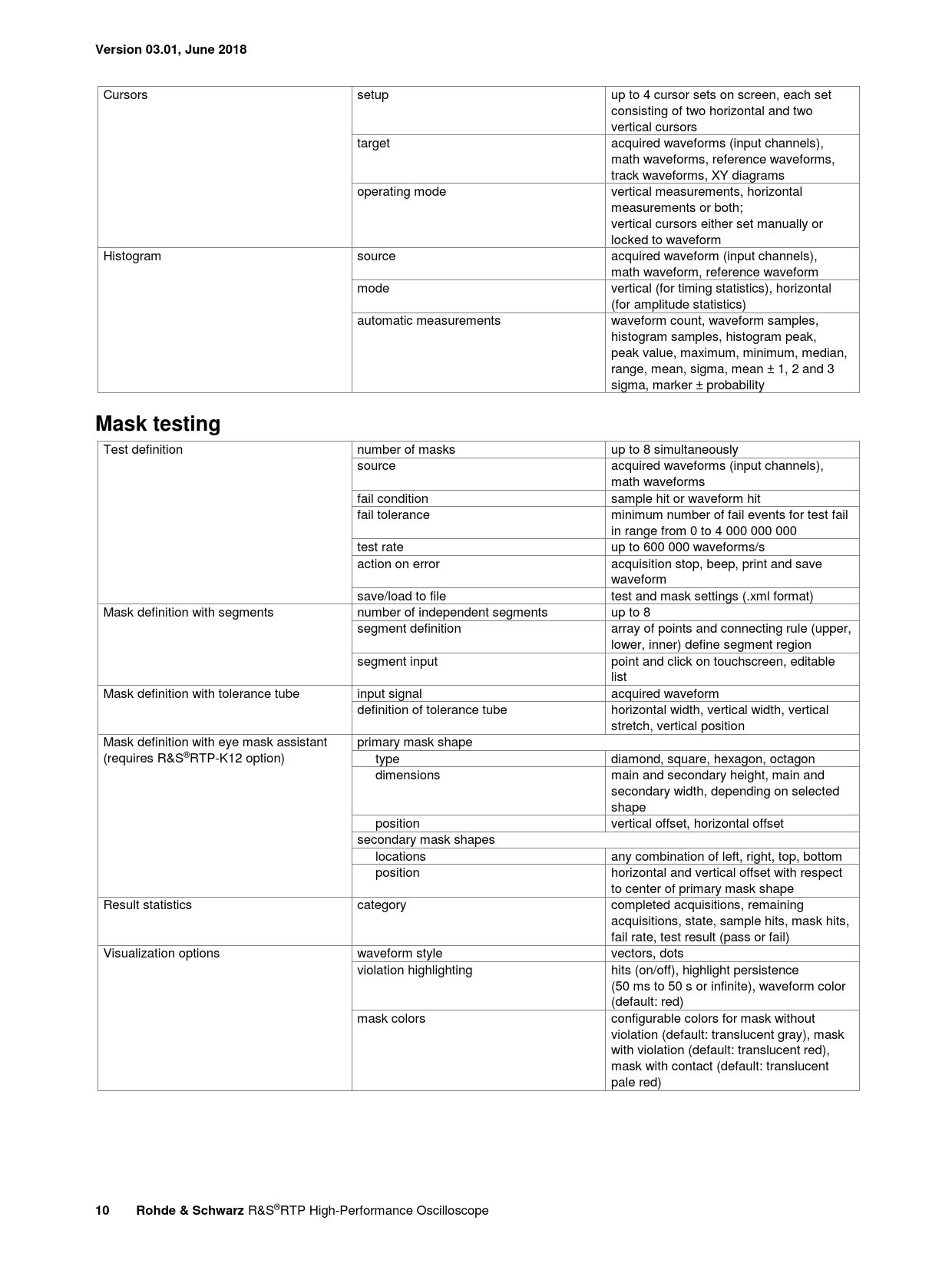

Version 03.01, June 2018
Cursors setup up to 4 cursor sets on screen, each set consisting of two horizontal and two vertical cursors target acquired waveforms (input channels), math waveforms, reference waveforms, track waveforms, XY diagrams operating mode vertical measurements, horizontal measurements or both; vertical cursors either set manually or locked to waveform Histogram source acquired waveform (input channels), math waveform, reference waveform mode vertical (for timing statistics), horizontal (for amplitude statistics) automatic measurements waveform count, waveform samples, histogram samples, histogram peak, peak value, maximum, minimum, median, range, mean, sigma, mean ± 1, 2 and 3 sigma, marker ± probability
Mask testing
Test definition number of masks up to 8 simultaneously source acquired waveforms (input channels), math waveforms fail condition sample hit or waveform hit fail tolerance minimum number of fail events for test fail in range from 0 to 4 000 000 000 test rate up to 600 000 waveforms/s action on error acquisition stop, beep, print and save waveform save/load to file test and mask settings (.xml format) Mask definition with segments number of independent segments up to 8 segment definition array of points and connecting rule (upper, lower, inner) define segment region segment input point and click on touchscreen, editable list Mask definition with tolerance tube input signal acquired waveform definition of tolerance tube horizontal width, vertical width, vertical stretch, vertical position Mask definition with eye mask assistant primary mask shape (requires R&S®RTP-K12 option) type diamond, square, hexagon, octagon dimensions main and secondary height, main and secondary width, depending on selected shape position vertical offset, horizontal offset secondary mask shapes locations any combination of left, right, top, bottom position horizontal and vertical offset with respect to center of primary mask shape Result statistics category completed acquisitions, remaining acquisitions, state, sample hits, mask hits, fail rate, test result (pass or fail) Visualization options waveform style vectors, dots violation highlighting hits (on/off), highlight persistence (50 ms to 50 s or infinite), waveform color (default: red) mask colors configurable colors for mask without violation (default: translucent gray), mask with violation (default: translucent red), mask with contact (default: translucent pale red)
