Realtime deembedding and advanced triggering. Quiet and compact. Premium front panel design. Rohde & Schwarz
Text Version of Document
ADCs ADCs
Realtime deembedding and advanced triggering

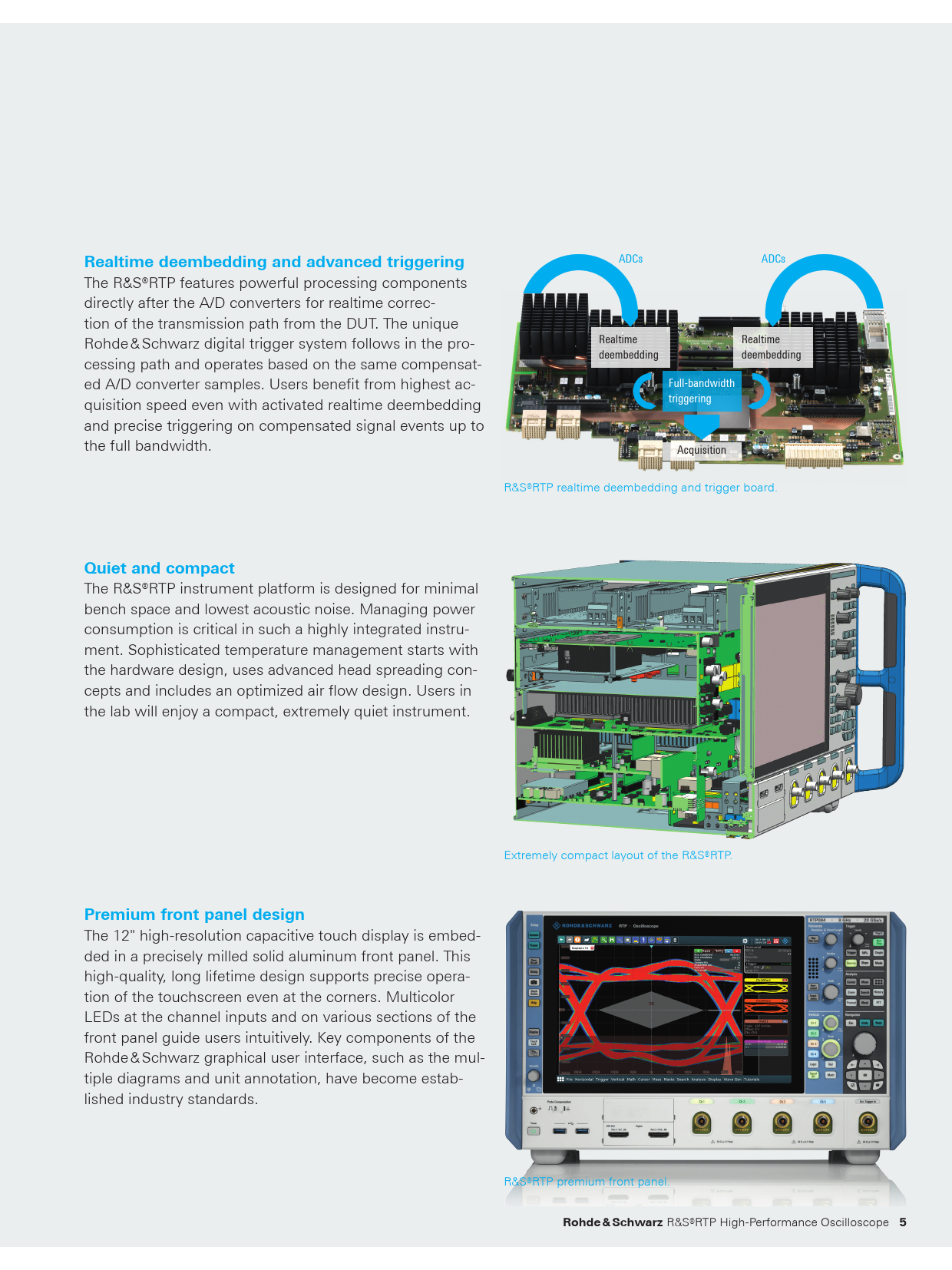

The R&S®RTP features powerful processing components directly after the A/D converters for realtime correc- tion of the transmission path from the DUT. The unique Realtime Realtime Rohde & Schwarz digital trigger system follows in the pro- deembedding deembedding cessing path and operates based on the same compensat- ed A/D converter samples. Users benefit from highest ac- Full-bandwidth triggering quisition speed even with activated realtime deembedding and precise triggering on compensated signal events up to the full bandwidth. Acquisition R&S®RTP realtime deembedding and trigger board.
Quiet and compact
The R&S®RTP instrument platform is designed for minimal bench space and lowest acoustic noise. Managing power consumption is critical in such a highly integrated instru- ment. Sophisticated temperature management starts with the hardware design, uses advanced head spreading con- cepts and includes an optimized air flow design. Users in the lab will enjoy a compact, extremely quiet instrument. Extremely compact layout of the R&S®RTP.
Premium front panel design
The 12" high-resolution capacitive touch display is embed- ded in a precisely milled solid aluminum front panel. This high-quality, long lifetime design supports precise opera- tion of the touchscreen even at the corners. Multicolor LEDs at the channel inputs and on various sections of the front panel guide users intuitively. Key components of the Rohde & Schwarz graphical user interface, such as the mul- tiple diagrams and unit annotation, have become estab- lished industry standards. R&S®RTP premium front panel.
