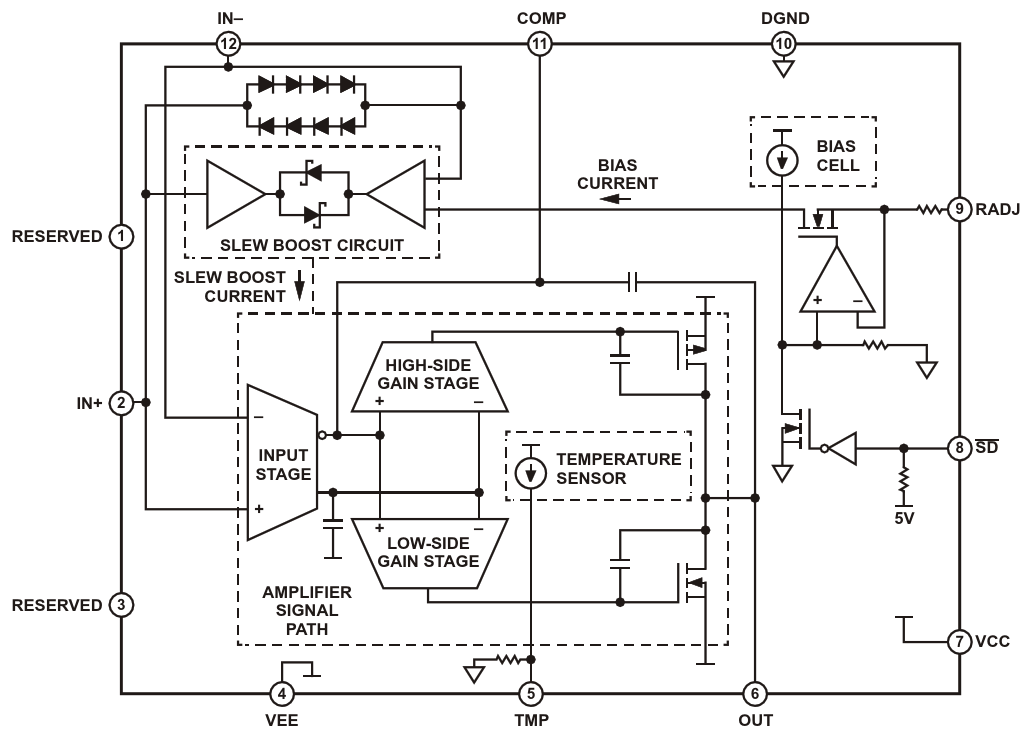

The ADHV4702-1 from Analog Devices is a 220-V device that can use symmetrical or asymmetrical bipolar supplies
| Authors | Bill Schweber |
| Main Document | Article «Learning to like high-voltage op-amp ICs» |
| Description | Figure 4 |
| File Format / Size | PDF / 51 Kb |
| Document Language | English |
