An inverted polarity MOSFET Q1 restores timer precision
| Authors | Stephen Woodward |
| Main Document | Article «Inverted MOSFET helps 555 oscillator ignore power supply and temp variations» |
| Description | Figure 2 |
| File Format / Size | PDF / 21 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Inverted MOSFET helps 555 oscillator ignore power supply and temp variations»
- Figure 1. Diode D1 causes temperature dependence in this 555 timer circuit

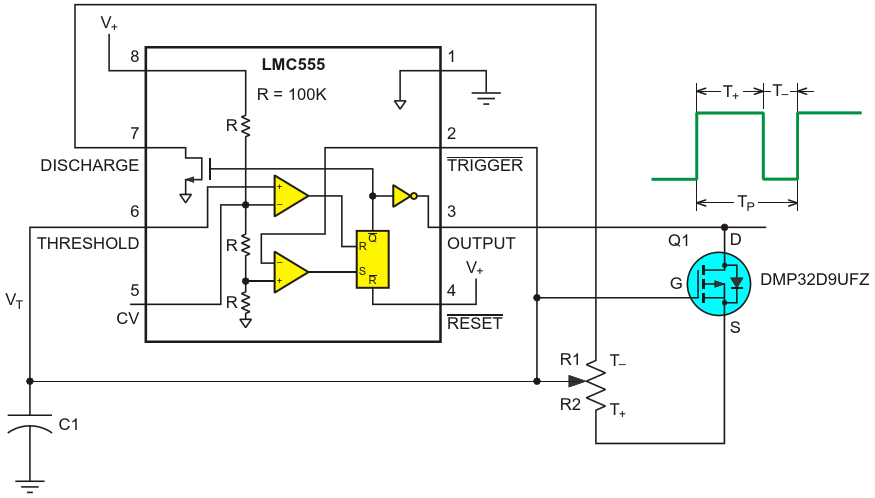

- Figure 2. An inverted polarity MOSFET Q1 restores timer precision
