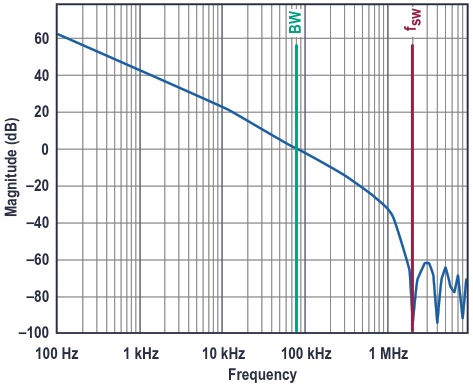

A Bode plot showing the gain of the control loop with a 0 dB crossover point at approximately 80 kHz
| Authors | Frederik Dostal |
| Main Document | Article «How Bode plots can help you meet the requirements for dynamic control behavior» |
| Description | Figure 2 |
| File Format / Size | PDF / 15 Kb |
| Document Language | English |
