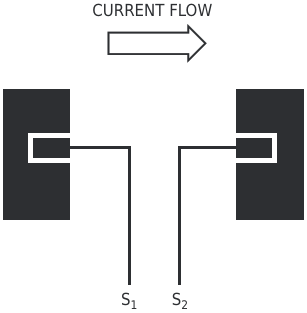

Modified pads provide isolated Kelvin connections that eliminate errors introduced by voltage drops across soldered connections carrying high current
| Authors | Craig Varga |
| Main Document | Article «Improved Kelvin contacts boost current-sensing accuracy by an order of magnitude» |
| Description | Figure 2 |
| File Format / Size | PDF / 6 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Improved Kelvin contacts boost current-sensing accuracy by an order of magnitude»
- Figure 1. Conventional solder pads offer two choices for Kelvin connections: on the pads' inner edges (a) or outer corners (b)
- Figure 2. Modified pads provide isolated Kelvin connections that eliminate errors introduced by voltage drops across soldered connections carrying high current
