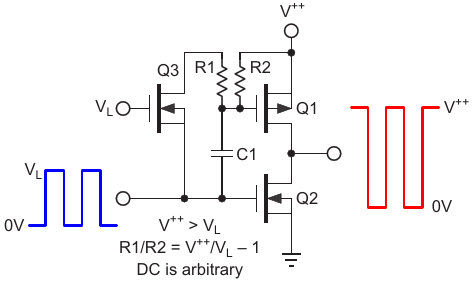

"Grounded" gate Q3 maintains C1 charge when logic signal stops
| Authors | Stephen Woodward |
| Main Document | Article «Driving CMOS totem poles with logic signals, AC coupling, and grounded gates» |
| Description | Figure 4 |
| File Format / Size | PDF / 11 Kb |
| Document Language | English |
