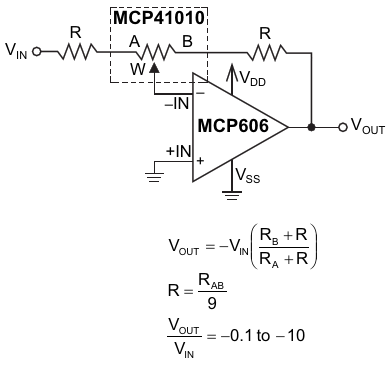

Two fixed resistors are added to bound the gain range to the recommended limits while keeping full 8-bit resolution
| Authors | Stephen Woodward |
| Main Document | Article «Dpot pseudolog + log lookup table = actual logarithmic gain» |
| Description | Figure 1 |
| File Format / Size | PDF / 16 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Dpot pseudolog + log lookup table = actual logarithmic gain»
- Figure 1. Two fixed resistors are added to bound the gain range to the recommended limits while keeping full 8-bit resolution
- Figure 2. Somewhat improved pseudologarithmic gain curve from the simple modification shown in Figure 1
- Figure 3. The Dpot settings [N(J)] versus log table indices [J(G)], summarizing the relationship between G, J, and N
- Figure 4. The absolute gain [GABS = 10(J/128 -1)] versus decimal code (J)
