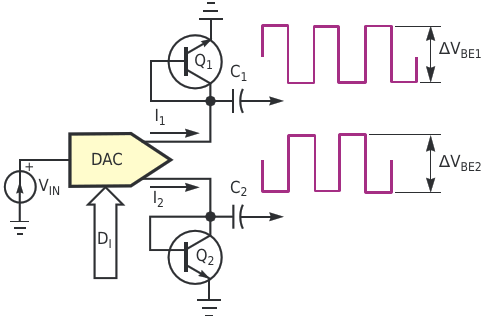

The DAC modulates transistors Q₁ and Q₂ with its two current outputs; ΔV_BE is a linear function of absolute temperature

Authors	Alexander Bell
Main Document	Article «Circuit improves on temperature measurement»
Description	Figure 1
File Format / Size	PDF / 12 Kb
Document Language	English

Other Materials from the Main Document

Figure 1. The DAC modulates transistors Q₁ and Q₂ with its two current outputs; ΔV_BE is a linear function of absolute temperature
Figure 2. The two op amps, IC₁ and IC₂, provide virtual grounds for both current outputs of the DAC
