Improved H-bridge-driver circuit uses transistors in complementary pairs and requires only two low-level control signals
| Authors | Luca Bruno |
| Main Document | Article «Microcontroller drives H bridge to power a permanent-magnet dc motor» |
| Description | Figure 2 |
| File Format / Size | PDF / 32 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Microcontroller drives H bridge to power a permanent-magnet dc motor»
- Figure 1. In an H-bridge output-driver stage, diagonally opposed transistor pairs conduct to energizea dc motor. The circuit requires four control signals

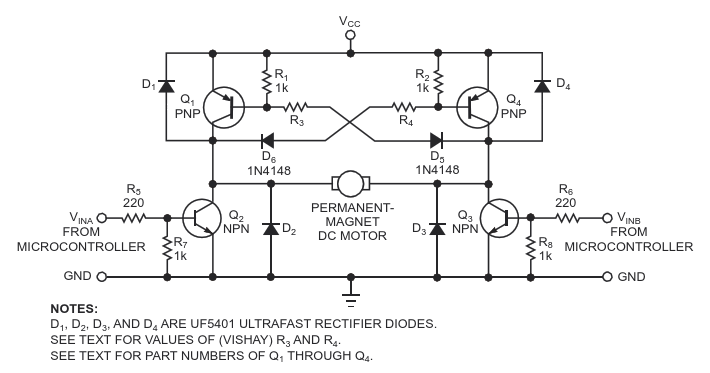

- Figure 2. Improved H-bridge-driver circuit uses transistors in complementary pairs and requires only two low-level control signals
