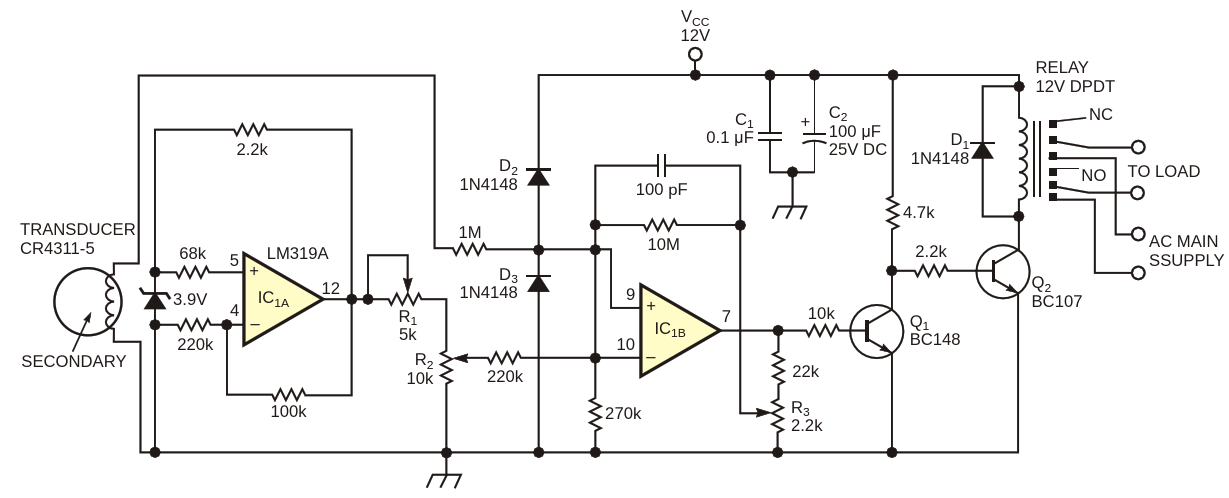

IC1B is a precision, fast-acting comparator and controls whether the relay is active based on a preset reference-voltage level
| Authors | Sharath Kumar |
| Main Document | Article «Circuit breaker monitors leakage current» |
| Description | Figure 1 |
| File Format / Size | PDF / 32 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Circuit breaker monitors leakage current»
- Figure 1. IC1B is a precision, fast-acting comparator and controls whether the relay is active based on a preset reference-voltage level
