Use this versatile precision rectifier circuit to recover a signal's positive peaks, negative peaks, or both in fullwave mode
| Authors | Harry Bissell Jr |
| Main Document | Article «Rectifier tracks positive and negative peaks» |
| Description | Figure 1 |
| File Format / Size | PDF / 31 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Rectifier tracks positive and negative peaks»

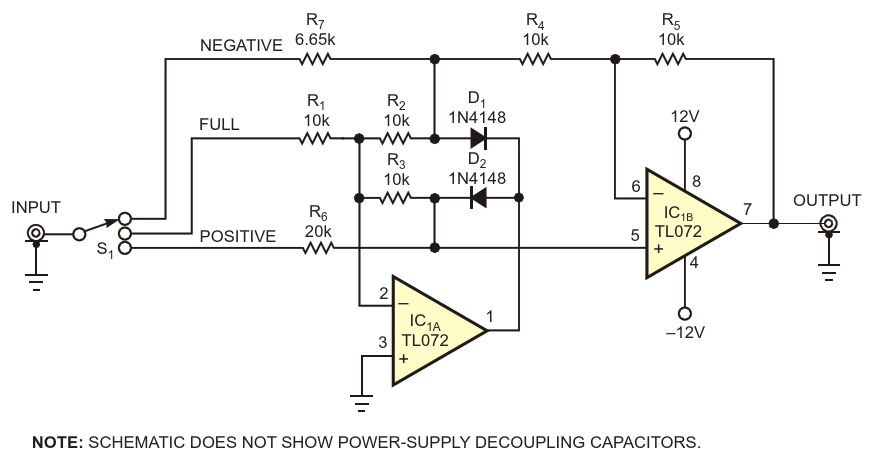

- Figure 1. Use this versatile precision rectifier circuit to recover a signal's positive peaks, negative peaks, or both in fullwave mode
- Figure 2. This waveform plot shows the circuit's outputs for a sine-wave input connected to the negative, full, and positive inputs, respectively. Traces are vertically offset for clarity
