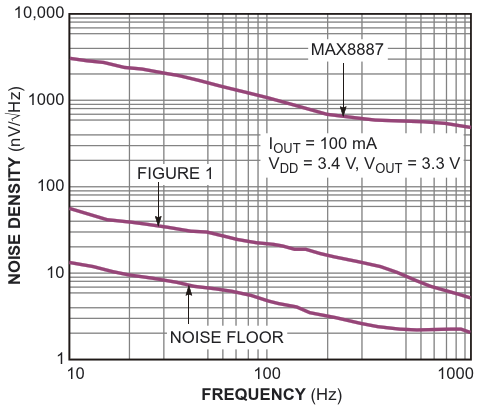

A noise-density-versus-frequency plot for the lowdropout circuit in Figure 1 is 38 dB lower than that of a conventional low-noise, low-dropout-voltage regulator - in this case, a Maxim MAX8887
| Authors | Ken Yang |
| Main Document | Article «Ultra-Low-Noise Low-Dropout Regulator Achieves 6-nV/√Hz Noise Floor» |
| Description | Figure 3 |
| File Format / Size | PDF / 25 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Ultra-Low-Noise Low-Dropout Regulator Achieves 6-nV/√Hz Noise Floor»
- Figure 1. This low-dropout-voltage regulator features a noise floor of only 6 nV/√Hz, making it an ideal power source for low-noise oscillators
- Figure 2. This simplified version of Figure 1 highlights noise sources for analysis
- Figure 3. A noise-density-versus-frequency plot for the lowdropout circuit in Figure 1 is 38 dB lower than that of a conventional low-noise, low-dropout-voltage regulator - in this case, a Maxim MAX8887
