You can set a motor's rotational direction and speed using this simple circuit
| Authors | Jean-Bernard Guiot |
| Main Document | Article «Circuit Provides Bidirectional, Variable-Speed Motor Control» |
| Description | Figure 1 |
| File Format / Size | PDF / 48 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Circuit Provides Bidirectional, Variable-Speed Motor Control»

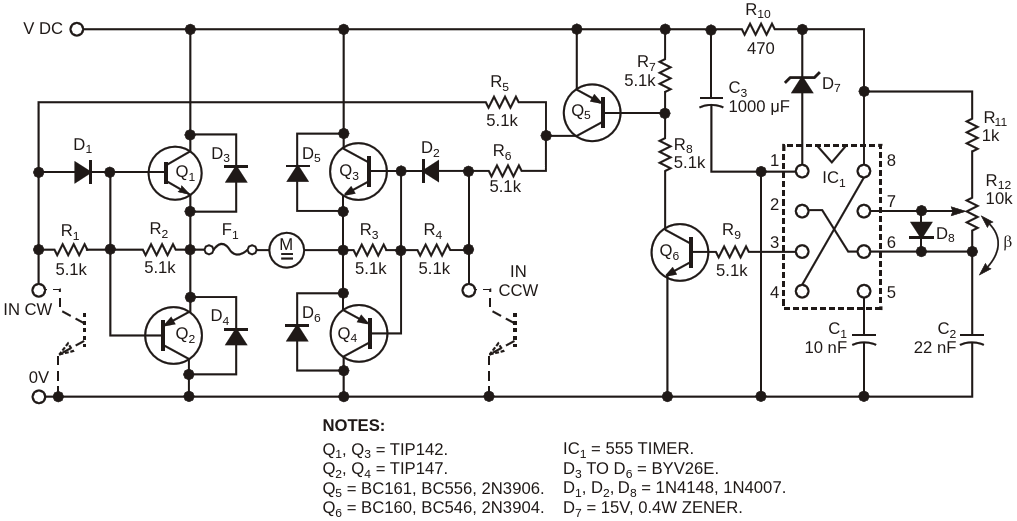

- Figure 1. You can set a motor's rotational direction and speed using this simple circuit
- Figure 2. The position of the wiper on the speed-control potentiometer determines the duty cycle of the chopper circuit. When it is fully down, β = 0 (a); when it is fully up, β = 1 (b)
