This circuit overcomes problems of excessive power consumption, uncertain switching, and LED aging
| Authors | Peter Demchenko |
| Main Document | Article «Improved Optocoupler Circuits Reduce Current Draw, Resist LED Aging» |
| Description | Figure 2 |
| File Format / Size | PDF / 25 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Improved Optocoupler Circuits Reduce Current Draw, Resist LED Aging»
- Figure 1. Establishing galvanic isolation with the help of optocouplers between circuits that operate at different ground potentials looks deceptively simple. Optocouplers draw power from the isolated circuit, and switching can be relatively slow and uncertain beca

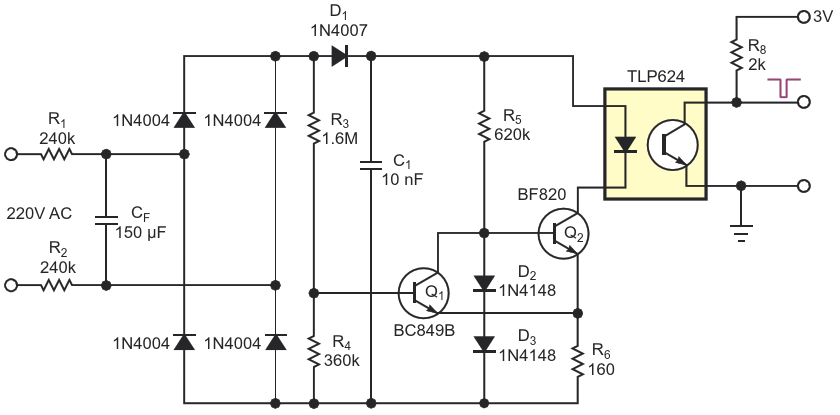

- Figure 2. This circuit overcomes problems of excessive power consumption, uncertain switching, and LED aging
- Figure 3. Another variant of this design shows how to manage without a requirement for minimal reverse current in D1
