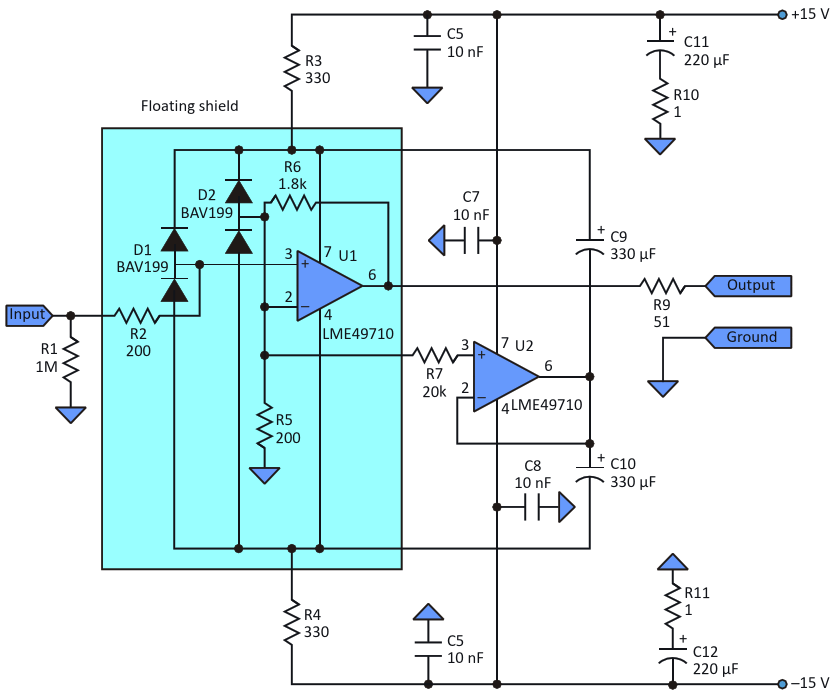

With some changes in components, the supply bootstrapping principle can also be used with an amplifier with gain (U2)
| Authors | Dimitri Danyuk |
| Main Document | Article «Supply Bootstrapping Reduces Distortion In Op-Amp Circuits» |
| Description | Figure 3 |
| File Format / Size | PDF / 84 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Supply Bootstrapping Reduces Distortion In Op-Amp Circuits»
- Figure 1. These curves for an LME49710-based standalone unity follower show distortion when fed by a 5-V rms signal source with a 1-MΩ source impedance (a), as well as for the circuit of Fig. 2 fed from the same source (b) and the source generator residual (c). Eac
- Figure 2. Using a circuit that includes a composite unity buffer with supply bootstrapping improves the distortion performance of the device significantly
- Figure 3. With some changes in components, the supply bootstrapping principle can also be used with an amplifier with gain (U2)
