At the terminal, IC4 converts the signals it receives from the interface to LVTTL levels and then feeds them to a set of passive filters
| Authors | Jiaqi Shen, Xiaoshu Cai |
| Main Document | Article «Precision Capacitive-Sensor Interface Suits Miniature Instruments» |
| Description | Figure 2 |
| File Format / Size | PDF / 54 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Precision Capacitive-Sensor Interface Suits Miniature Instruments»
- Figure 1. This compact capacitive-sensor-interface-circuit design permits great flexibility; you can easily integrate it into a miniature sensor head near the measurement point

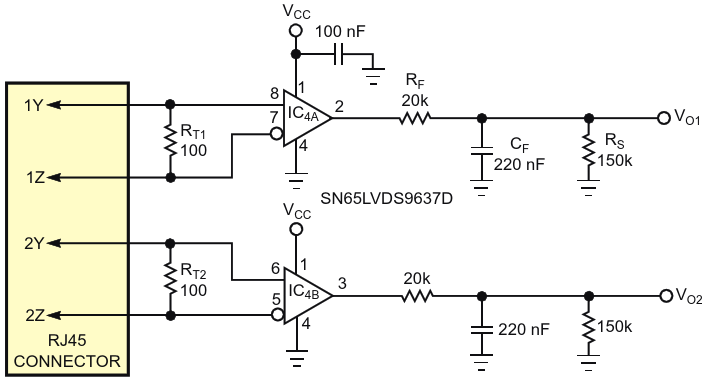

- Figure 2. At the terminal, IC4 converts the signals it receives from the interface to LVTTL levels and then feeds them to a set of passive filters
