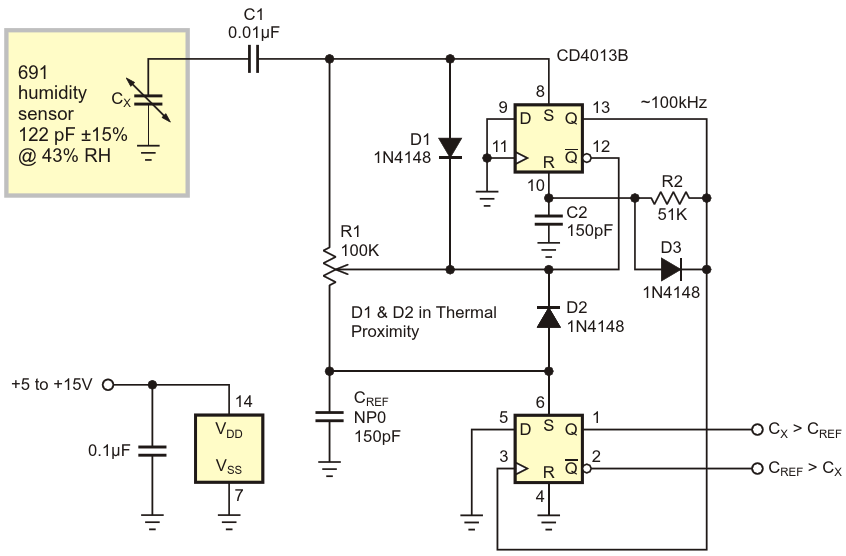

Circuit diagram with the CD4013B used as a capacitive humidity sensor
| Authors | Stephen Woodward |
| Main Document | Article «CMOS flip-flop used "off label" implements precision capacitance sensor» |
| Description | Figure 1 |
| File Format / Size | PDF / 27 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «CMOS flip-flop used "off label" implements precision capacitance sensor»
- Figure 1. Circuit diagram with the CD4013B used as a capacitive humidity sensor
- Figure 2. Motion limit/position sensing proximity switch using the CD4013B
- Figure 3. Liquid level sensor using the CD4013B
