TL431-based shunt regulator or clipper using N-channel MOSFET
| Authors | Peter Demchenko |
| Main Document | Article «Shunt circuit clips large transients or regulates voltage» |
| Description | Figure 2 |
| File Format / Size | PDF / 9 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Shunt circuit clips large transients or regulates voltage»
- Figure 1. TL431-based shunt regulator or clipper

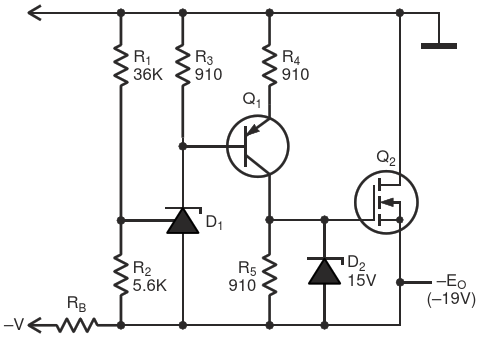

- Figure 2. TL431-based shunt regulator or clipper using N-channel MOSFET
