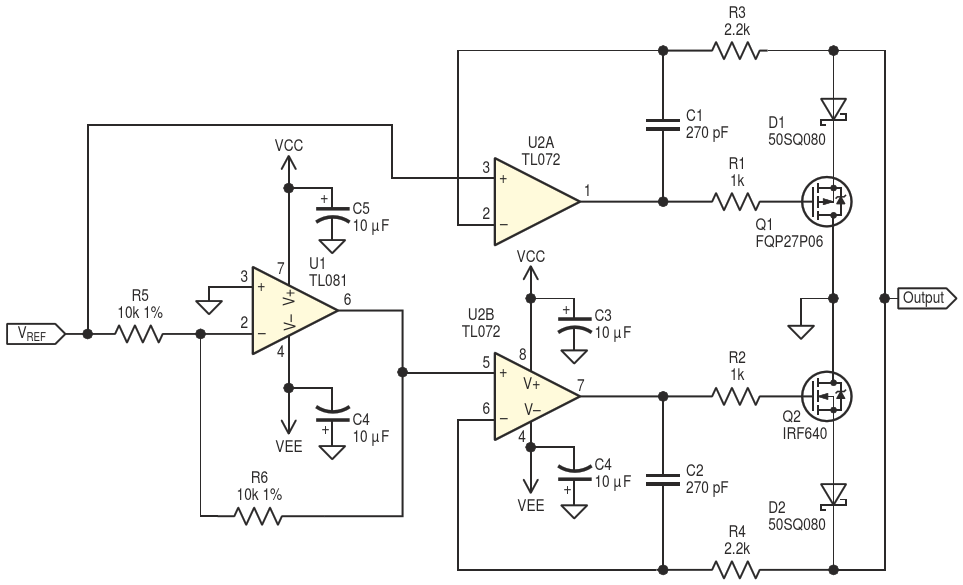

Schematic for a symmetrical shunt voltage limiter
| Authors | Daniel Dufresne |
| Main Document | Article «Active shunt voltage limiter outshines Zener. Part 2» |
| Description | Figure 4 |
| File Format / Size | PDF / 29 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Active shunt voltage limiter outshines Zener. Part 2»
- Figure 4. Schematic for a symmetrical shunt voltage limiter
- Figure 5. Curve for circuit in Figure 4, limiting voltage is very symmetrical about 0 V
- Figure 7. Schematic symmetrical shunt voltage limiter with the final op-amps operated in inverting mode
- Figure 9. Curve for positive half only of circuit in Figure 7, increased speed does not affect DC performance
- Figure 10. Schematic of a voltage limiter capable of operating below 1 V
- Figure 11. Curve for circuit in Figure 10
