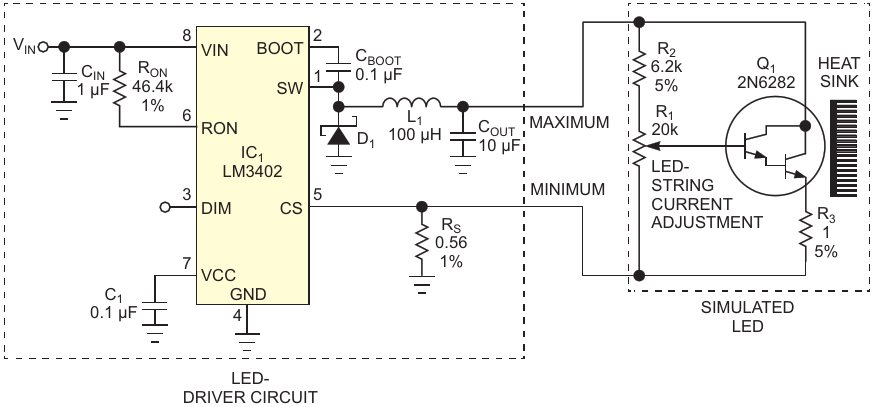

Use this circuit for quick testing of an LED-driver circuit over minimum, typical, and maximum LED parameters
| Authors | Donald Schelle, Jon Roman |
| Main Document | Article «Accurately simulate an LED» |
| Description | Figure 1 |
| File Format / Size | PDF / 15 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Accurately simulate an LED»
- Figure 1. Use this circuit for quick testing of an LED-driver circuit over minimum, typical, and maximum LED parameters
- Figure 2. The simulated LED approximates the turn-on characteristics of a real LED. A constant-resistance load approximates a real LED load at only one point on the curve
