Cross-couple flip-flop outputs with a choke to make an oscillator with period proportional to inductance and thus a simple sensor of metallic objects
| Authors | Stephen Woodward |
| Main Document | Article «Flip-flop plus choke comprise simple and cheap inductive sensor» |
| Description | Figure 1 |
| File Format / Size | PDF / 15 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Flip-flop plus choke comprise simple and cheap inductive sensor»

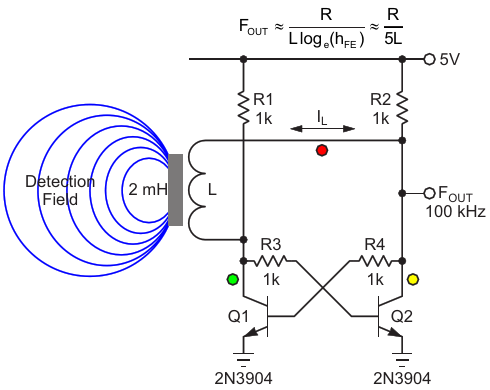

- Figure 1. Cross-couple flip-flop outputs with a choke to make an oscillator with period proportional to inductance and thus a simple sensor of metallic objects
- Figure 2. Inductor current wave shape during one ~5 µs oscillation half-cycle
- Figure 3. Oscillator waveforms: IL and Q1, Q2 output signals
