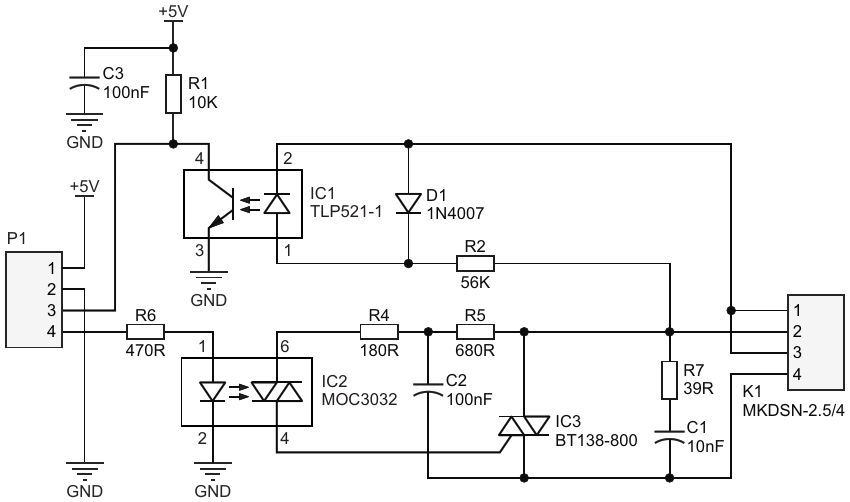

Schematic diagram of the digital AC dimmer
| Authors | Hesam Moshiri |
| Main Document | Article «How to build an isolated digital AC dimmer using Arduino» |
| Description | Figure 2 |
| File Format / Size | PDF / 15 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «How to build an isolated digital AC dimmer using Arduino»
- Figure 2. Schematic diagram of the digital AC dimmer
