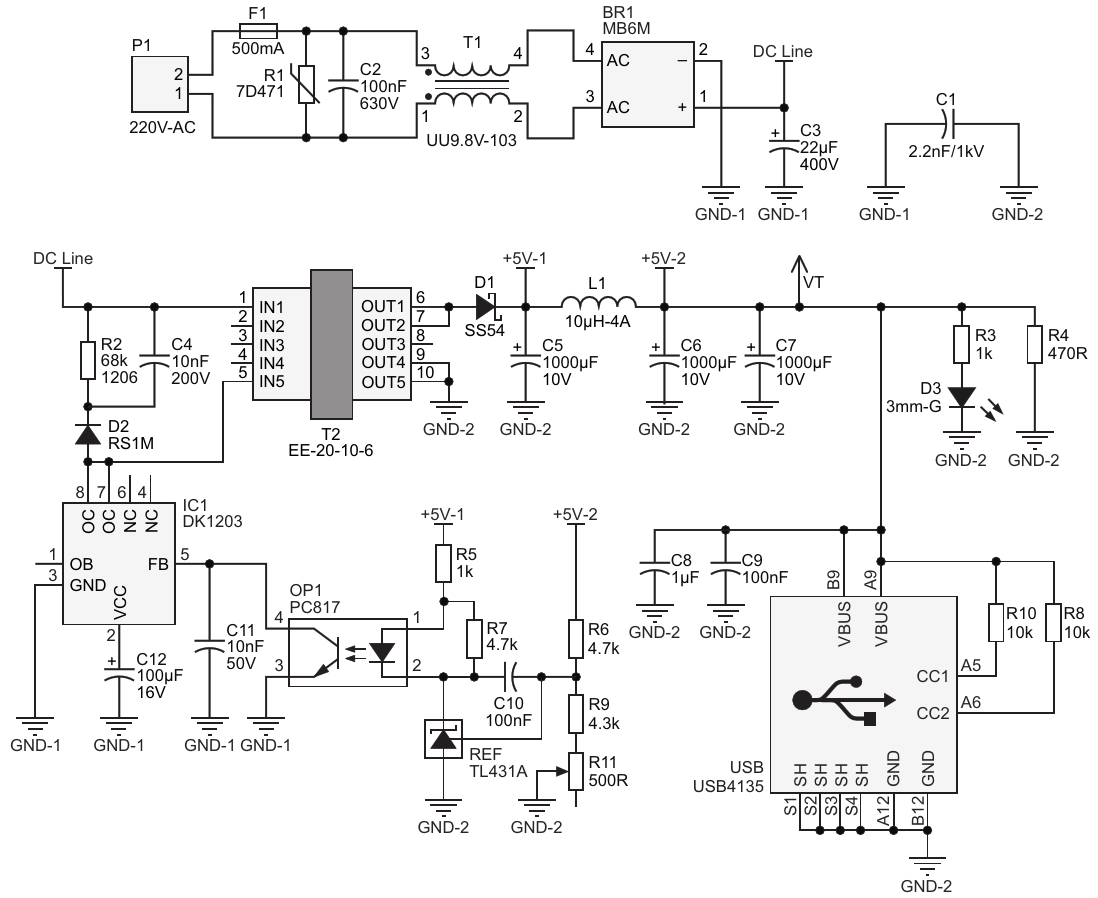

Schematic diagram of the flyback switching power supply
| Authors | Hesam Moshiri |
| Main Document | Article «85V-260VAC to 5VDC-2.5A flyback switching power supply» |
| Description | Figure 1 |
| File Format / Size | PDF / 25 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «85V-260VAC to 5VDC-2.5A flyback switching power supply»
- Figure 1. Schematic diagram of the flyback switching power supply
- Figure 3. The 20-10-6 EE core and the non-magnetic gap of the middle legs
- Figure 5. Transformer winding
- Figure 12. Output voltage adjustment
