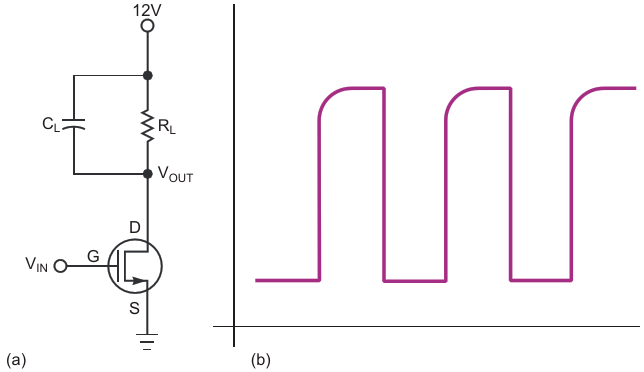

An N-channel FET driver (a) has output that exhibits an exponential rising edge on shutoff (b)
| Authors | Steve Franks |
| Main Document | Article «FET biasing targets battery-powered PWM applications» |
| Description | Figure 2 |
| File Format / Size | PDF / 8 Kb |
| Document Language | English |
