This simple circuit provides four-position motor control with two inputs
| Authors | Jean-Bernard Guiot |
| Main Document | Article «Motor-control scheme yields four positions with two outputs» |
| Description | Figure 1 |
| File Format / Size | PDF / 23 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Motor-control scheme yields four positions with two outputs»

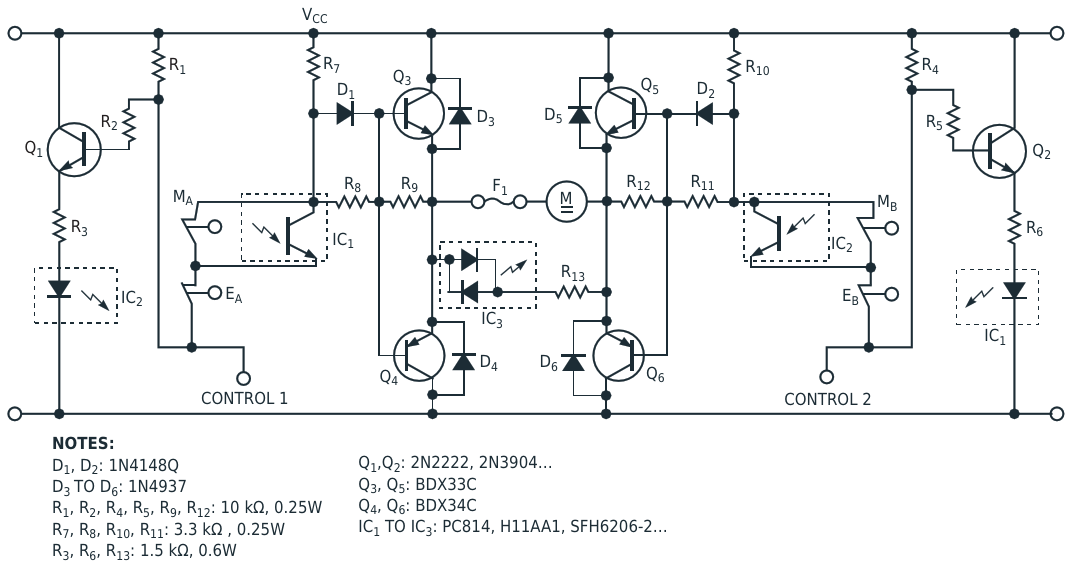

- Figure 1. This simple circuit provides four-position motor control with two inputs
- Figure 2. Cams operate the limit switches in Figure 1, producing four discrete positions
