Package Intersil N32.45x55

Plastic Packages for Integrated Circuits

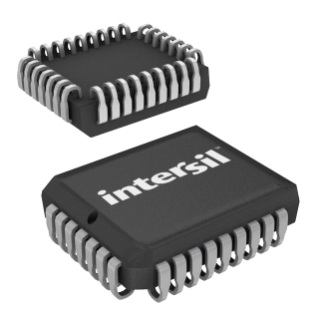

Plastic Leaded Chip Carrier Packages (PLCC)
0.042 (1.07)
0.048 (1.22) N32.45x55 (JEDEC MS-016AE ISSUE A) 0.042 (1.07)
0.056 (1.42) PIN (1)
IDENTIFIER 0.004 (0.10) 0.050 (1.27) TP 0.025 (0.64)
R
0.045 (1.14) ND CL C D2/E2 E1 E C
L
D2/E2 NE
VIEW “A” A1
A D1
D 0.015 (0.38)
MIN SEATING
-C-PLANE 0.020 (0.51) MAX
3 PLCS
0.026 (0.66)
0.032 (0.81) 0.050 (1.27)
MIN 0.013 (0.33)
0.021 (0.53) 0.025 (0.64)
MIN (0.12)
M A S -B S D S
0.005 …
