Datasheet Wago 2091-1407/200-000

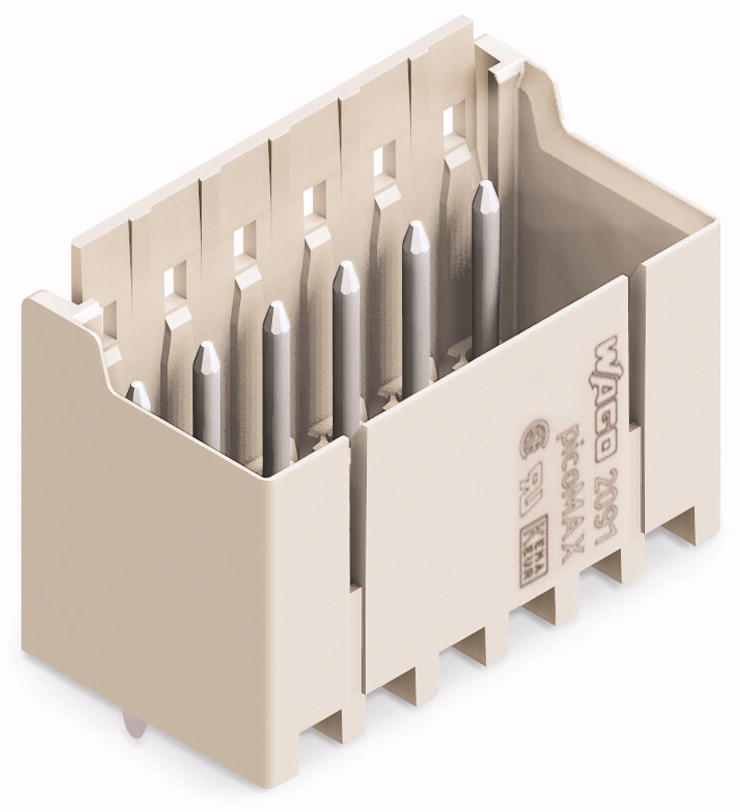

THR male header; 1.0 mm Ø solder pin; straight; Pin spacing 3.5 mm; 7-pole
Prices
Detailed Description
Parametrics
| Color | light gray |
| Connector connection type | for PCBs |
| Contact material | Electrolytic copper (Ecu) |
| Contact plating | tin-plated |
| Contact type (pluggable connector) | Male connector/plug |
| Страна происхождения | DE |
| Depth | 12.4 mm / 0.488 inch |
| Flammability class per UL94 | V0 |
| Global Trade Item Number (GTIN) | 4055143460927 |
| Height | 19.9 mm / 0.783 inch |
| Height from the surface | 17.5 mm / 0.689 inch |
| Insulating material | Polyphtalamide (PPA GF) |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Limit temperature range | -60 … +100 °C |
| Locking of plug-in connection | Male locking latch |
| Material group | I |
| Mating direction to the PCB | 90 ° |
| Mismating protection | No |
| Number of Poles | 7 |
| Number of levels | 1 |
| PCB contact | THR |
| Pin spacing | 3.5 mm (0.138 inch) |
| Plated through-hole diameter (THR) | 1.2 (+ 0.1) mm |
| Rated current | 10 A |
| Rated impulse voltage (II / 2) | 2.5 kV |
| Rated impulse voltage (III / 2) | 2.5 kV |
| Rated impulse voltage (III / 3) | 2.5 kV |
| Rated voltage (II / 2) | 320 V |
| Rated voltage (III / 2) | 160 V |
| Rated voltage (III / 3) | 160 V |
| Solder pin diameter | 1 mm |
| Solder pin length | 2.4 mm |
| Total number of potentials | 7 |
| Weight | 2.4 g |
| Width | 26.5 mm / 1.043 inch |
