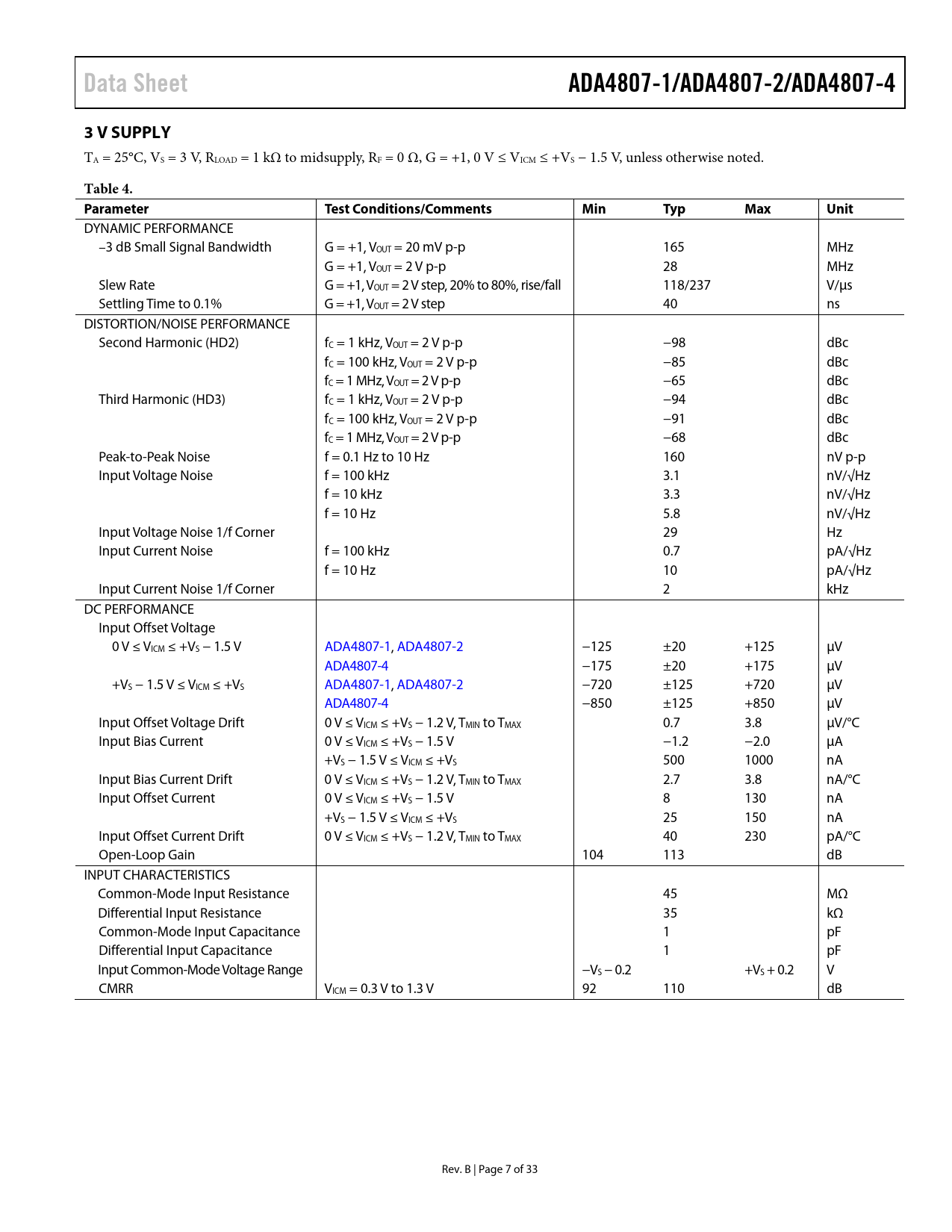

Data Sheet ADA4807-1/ADA4807-2/ADA4807-4 3 V SUPPLY
TA = 25°C, VS = 3 V, RLOAD = 1 kΩ to midsupply, RF = 0 Ω, G = +1, 0 V ≤ VICM ≤ +VS − 1.5 V, unless otherwise noted.
Table 4. Parameter Test Conditions/Comments Min Typ Max Unit
DYNAMIC PERFORMANCE –3 dB Small Signal Bandwidth G = +1, VOUT = 20 mV p-p 165 MHz G = +1, VOUT = 2 V p-p 28 MHz Slew Rate G = +1, VOUT = 2 V step, 20% to 80%, rise/fall 118/237 V/μs Settling Time to 0.1% G = +1, VOUT = 2 V step 40 ns DISTORTION/NOISE PERFORMANCE Second Harmonic (HD2) fC = 1 kHz, VOUT = 2 V p-p −98 dBc fC = 100 kHz, VOUT = 2 V p-p −85 dBc fC = 1 MHz, VOUT = 2 V p-p −65 dBc Third Harmonic (HD3) fC = 1 kHz, VOUT = 2 V p-p −94 dBc fC = 100 kHz, VOUT = 2 V p-p −91 dBc fC = 1 MHz, VOUT = 2 V p-p −68 dBc Peak-to-Peak Noise f = 0.1 Hz to 10 Hz 160 nV p-p Input Voltage Noise f = 100 kHz 3.1 nV/√Hz f = 10 kHz 3.3 nV/√Hz f = 10 Hz 5.8 nV/√Hz Input Voltage Noise 1/f Corner 29 Hz Input Current Noise f = 100 kHz 0.7 pA/√Hz f = 10 Hz 10 pA/√Hz Input Current Noise 1/f Corner 2 kHz DC PERFORMANCE Input Offset Voltage 0 V ≤ VICM ≤ +VS − 1.5 V ADA4807-1, ADA4807-2 −125 ±20 +125 μV ADA4807-4 −175 ±20 +175 μV +VS − 1.5 V ≤ VICM ≤ +VS ADA4807-1, ADA4807-2 −720 ±125 +720 μV ADA4807-4 −850 ±125 +850 μV Input Offset Voltage Drift 0 V ≤ VICM ≤ +VS − 1.2 V, TMIN to TMAX 0.7 3.8 μV/°C Input Bias Current 0 V ≤ VICM ≤ +VS − 1.5 V −1.2 −2.0 μA +VS − 1.5 V ≤ VICM ≤ +VS 500 1000 nA Input Bias Current Drift 0 V ≤ VICM ≤ +VS − 1.2 V, TMIN to TMAX 2.7 3.8 nA/°C Input Offset Current 0 V ≤ VICM ≤ +VS − 1.5 V 8 130 nA +VS − 1.5 V ≤ VICM ≤ +VS 25 150 nA Input Offset Current Drift 0 V ≤ VICM ≤ +VS − 1.2 V, TMIN to TMAX 40 230 pA/°C Open-Loop Gain 104 113 dB INPUT CHARACTERISTICS Common-Mode Input Resistance 45 MΩ Differential Input Resistance 35 kΩ Common-Mode Input Capacitance 1 pF Differential Input Capacitance 1 pF Input Common-Mode Voltage Range −VS − 0.2 +VS + 0.2 V CMRR VICM = 0.3 V to 1.3 V 92 110 dB Rev. B | Page 7 of 33 Document Outline FEATURES APPLICATIONS PIN CONNECTION DIAGRAMS GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ±5 V SUPPLY 5 V SUPPLY 3 V SUPPLY ABSOLUTE MAXIMUM RATINGS MAXIMUM POWER DISSIPATION THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS FREQUENCY RESPONSE FREQUENCY AND SUPPLY CURRENT DC AND INPUT COMMON-MODE PERFORMANCE SLEW, TRANSIENT, SETTLING TIME, AND CROSSTALK DISTORTION AND NOISE OUTPUT CHARACTERISTICS OVERDRIVE RECOVERY AND TURN ON/TURN OFF TIMES THEORY OF OPERATION DISABLE CIRCUITRY INPUT PROTECTION NOISE CONSIDERATIONS APPLICATIONS INFORMATION CAPACITIVE LOAD DRIVE LOW NOISE FET OPERATIONAL AMPLIFIER POWER MODE ADC DRIVER ADC DRIVING ADC DRIVING WITH DYNAMIC POWER SCALING LAYOUT, GROUNDING, AND BYPASSING OUTLINE DIMENSIONS ORDERING GUIDE
