AD744–Typical Characteristics
Text Version of Document
AD744–Typical Characteristics

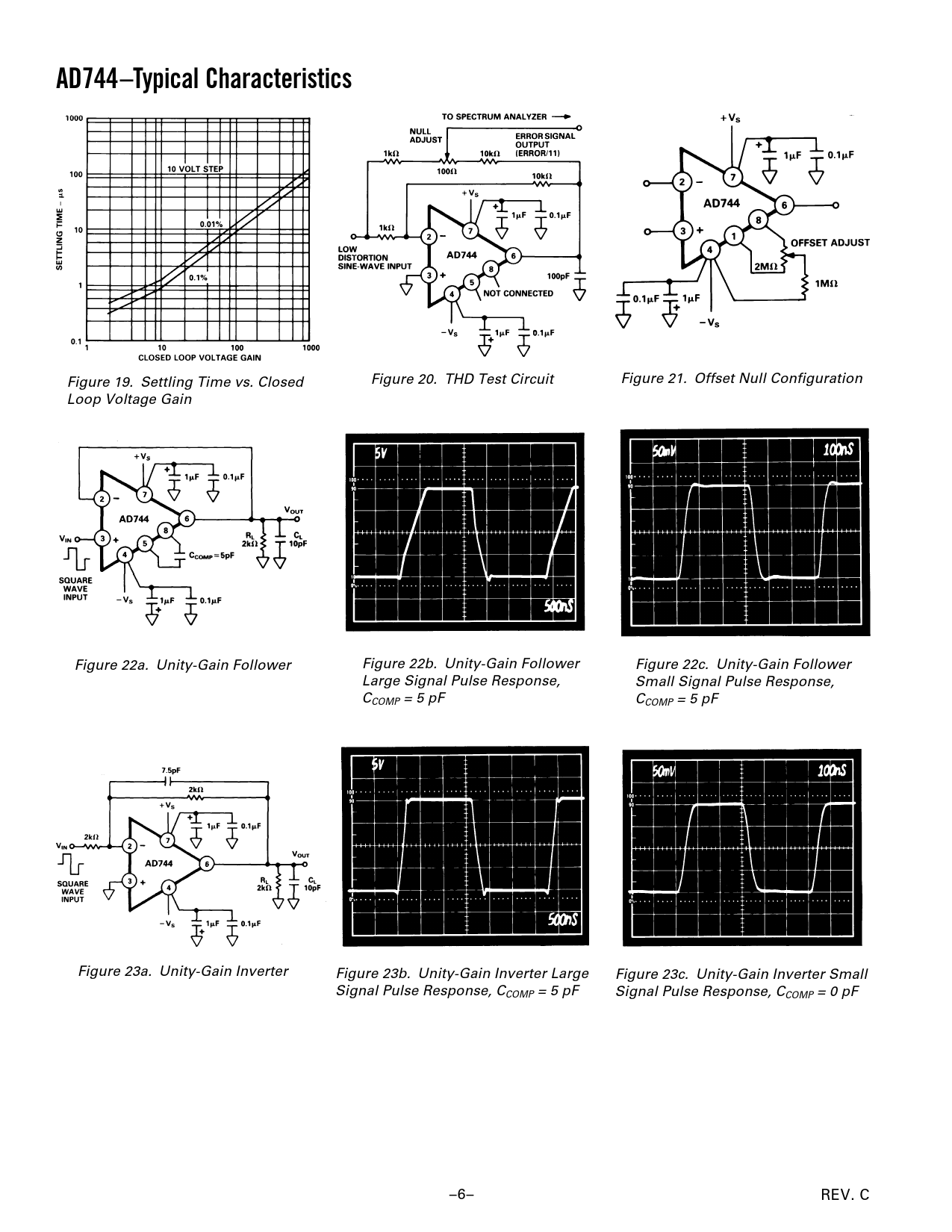

Figure 19. Settling Time vs. Closed Figure 20. THD Test Circuit Figure 21. Offset Null Configuration Loop Voltage Gain Figure 22a. Unity-Gain Follower Figure 22b. Unity-Gain Follower Figure 22c. Unity-Gain Follower Large Signal Pulse Response, Small Signal Pulse Response, CCOMP = 5 pF CCOMP = 5 pF Figure 23a. Unity-Gain Inverter Figure 23b. Unity-Gain Inverter Large Figure 23c. Unity-Gain Inverter Small Signal Pulse Response, CCOMP = 5 pF Signal Pulse Response, CCOMP = 0 pF –6– REV. C
Figure 19. Settling Time vs. Closed Figure 20. THD Test Circuit Figure 21. Offset Null Configuration Loop Voltage Gain Figure 22a. Unity-Gain Follower Figure 22b. Unity-Gain Follower Figure 22c. Unity-Gain Follower Large Signal Pulse Response, Small Signal Pulse Response, CCOMP = 5 pF CCOMP = 5 pF Figure 23a. Unity-Gain Inverter Figure 23b. Unity-Gain Inverter Large Figure 23c. Unity-Gain Inverter Small Signal Pulse Response, CCOMP = 5 pF Signal Pulse Response, CCOMP = 0 pF –6– REV. C
