Datasheet TS3431 (STMicroelectronics)
| Manufacturer | STMicroelectronics |
| Description | 1.24 V programmable shunt voltage reference |
| Pages / Page | 13 / 1 — TS3431. Datasheet. production data. Features. SOT23-3L. Applications. … |
| File Format / Size | PDF / 167 Kb |
| Document Language | English |

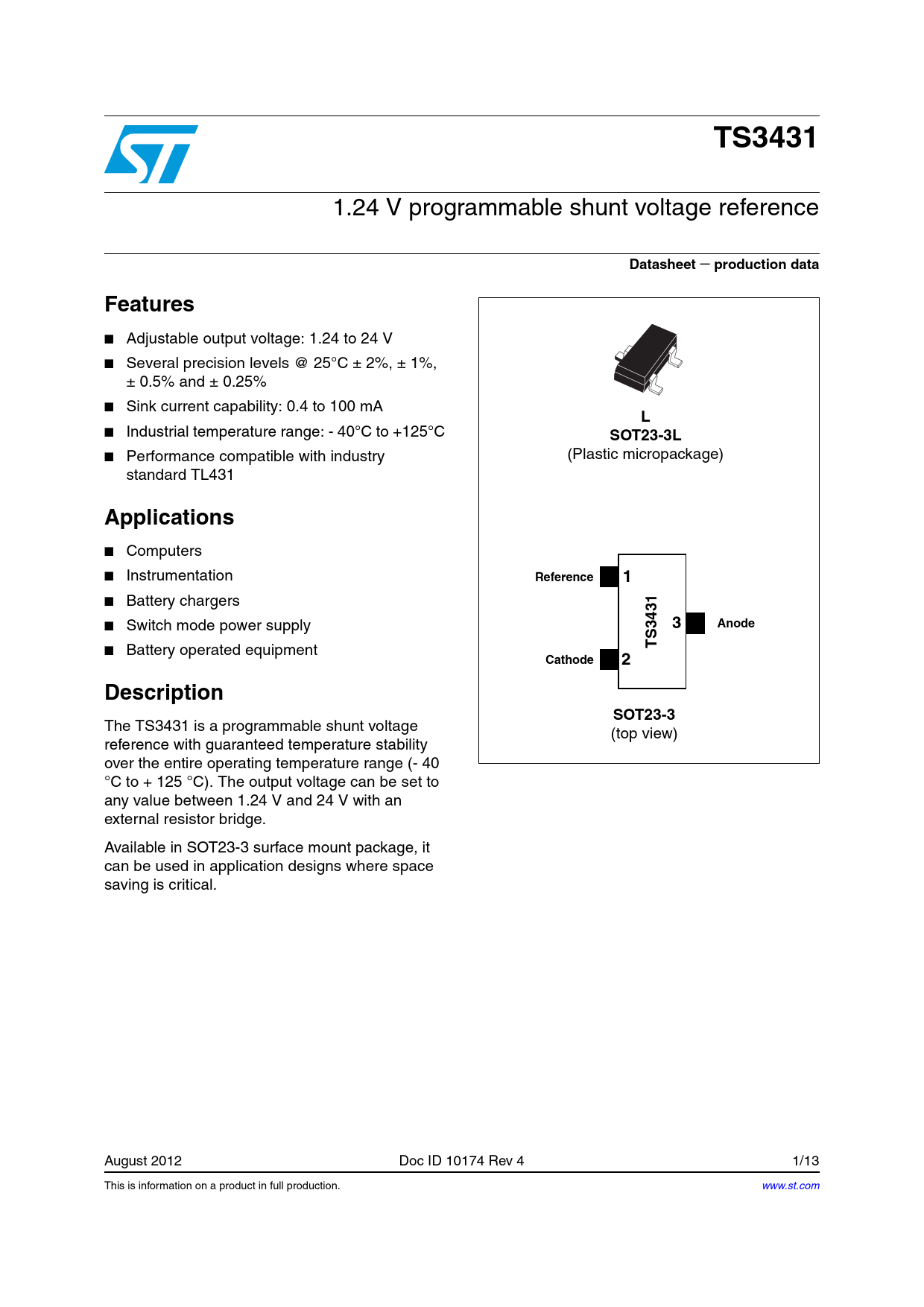

TS3431. Datasheet. production data. Features. SOT23-3L. Applications. Reference. 3431. Anode. Cathode. Description. SOT23-3
Text Version of Document
TS3431
1.24 V programmable shunt voltage reference
Datasheet
−
production data Features
■ Adjustable output voltage: 1.24 to 24 V ■ Several precision levels @ 25°C ± 2%, ± 1%, ± 0.5% and ± 0.25% ■ Sink current capability: 0.4 to 100 mA
L
■ Industrial temperature range: - 40°C to +125°C
SOT23-3L
■ Performance compatible with industry (Plastic micropackage) standard TL431
Applications
■ Computers ■ Instrumentation
Reference 1
■ Battery chargers ■ Switch mode power supply
3431 3 Anode S
■
T
Battery operated equipment
Cathode 2 Description SOT23-3
The TS3431 is a programmable shunt voltage (top view) reference with guaranteed temperature stability over the entire operating temperature range (- 40 °C to + 125 °C). The output voltage can be set to any value between 1.24 V and 24 V with an external resistor bridge. Available in SOT23-3 surface mount package, it can be used in application designs where space saving is critical. August 2012 Doc ID 10174 Rev 4 1/13 This is information on a product in full production. www.st.com 13 Document Outline 1 Block diagram Figure 1. Block diagram 2 Absolute maximum ratings Table 1. Absolute maximum ratings (AMR) Table 2. Operating conditions 3 Electrical characteristics Table 3. Tamb = 25˚C (unless otherwise specified) Figure 2. Reference voltage vs. temperature Figure 3. Test circuit for VK = Vref Figure 4. Cathode voltage vs. cathode current Figure 5. Minimum operating current vs. temperature Figure 6. Reference input current vs. temperature Figure 7. Dynamic impedance vs frequency Figure 8. Off-state current vs temperature Figure 9. Test circuit for off-state current measurement Figure 10. Ratio of change in reference input voltage to change in VKA voltage vs. temperature Figure 11. Test circuit for VK > VREF Figure 12. Pulse response at IK=1mA Figure 13. Test circuit for pulse response at IK = 1mA Figure 14. Pulse response at IK = 10mA Figure 15. Test circuit for pulse response at IK = 10mA Figure 16. Phase and gain vs frequency Figure 17. Equivalent input noise vs. frequency Figure 18. Test circuit for phase and gain measurement 4 Package mechanical data Table 4. SOT23-3L package mechanical data 5 Ordering information Table 5. Order codes 6 Revision history Table 6. Document revision history
