Datasheet SFH 213 FA (OSRAM) - 5
| Manufacturer | OSRAM |
| Description | Silicon PIN Photodiode |
| Pages / Page | 9 / 5 — Version 1.3. SFH 213 FA. Directional Characteristics. Package Outline. … |
| File Format / Size | PDF / 274 Kb |
| Document Language | English |
Version 1.3. SFH 213 FA. Directional Characteristics. Package Outline. Package
Model Line for this Datasheet
Text Version of Document
link to page 8

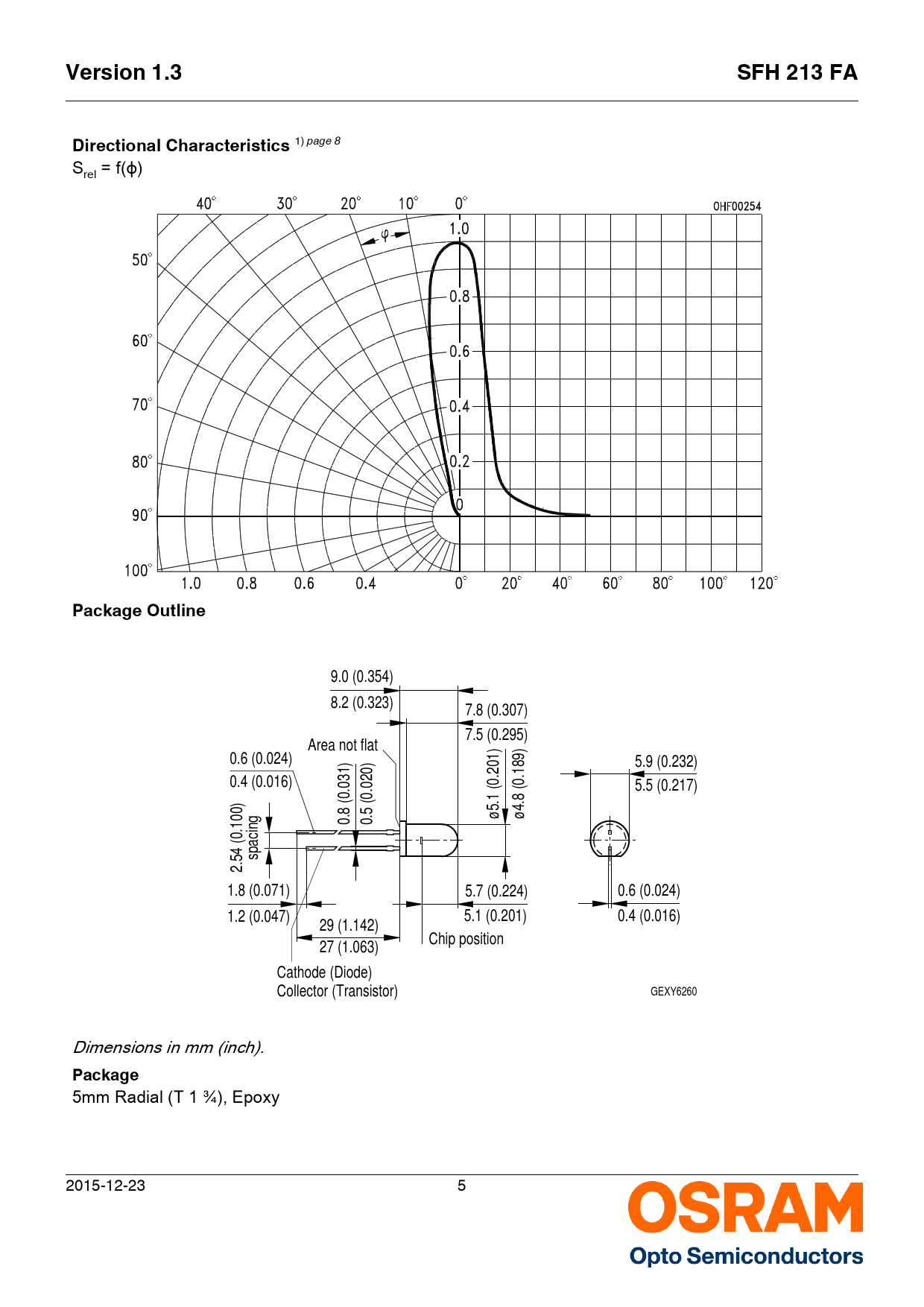

Version 1.3 SFH 213 FA Directional Characteristics
1) page 8 Srel = f(ϕ)
Package Outline
9.0 (0.354) 8.2 (0.323) 7.8 (0.307) 7.5 (0.295) Area not flat 0.6 (0.024) 5.9 (0.232) 0.4 (0.016) 5.5 (0.217) 0.8 (0.031) 0.5 (0.020) ø5.1 (0.201) ø4.8 (0.189) spacing 2.54 (0.100) 1.8 (0.071) 5.7 (0.224) 0.6 (0.024) 1.2 (0.047) 5.1 (0.201) 0.4 (0.016) 29 (1.142) Chip position 27 (1.063) Cathode (Diode) Collector (Transistor) GEXY6260 Dimensions in mm (inch).
Package
5mm Radial (T 1 ¾), Epoxy 2015-12-23 5 Document Outline Features: Applications Ordering Information Maximum Ratings Characteristics Relative Spectral Sensitivity Photocurrent / Open-Circuit Voltage Dark Current Capacitance Dark Current Directional Characteristics Package Outline Disclaimer Glossary
