Datasheet ATtiny13A. Appendix A. Specification at 105°C (Microchip) - 7
| Manufacturer | Microchip |
| Description | 8-bit AVR Microcontroller with 1K Bytes In-System Programmable Flash |
| Pages / Page | 38 / 7 — ATtiny13A. Figure 2-2. Figure 2-3 |
| File Format / Size | PDF / 2.2 Mb |
| Document Language | English |
ATtiny13A. Figure 2-2. Figure 2-3
Model Line for this Datasheet
Text Version of Document
ATtiny13A Figure 2-2.

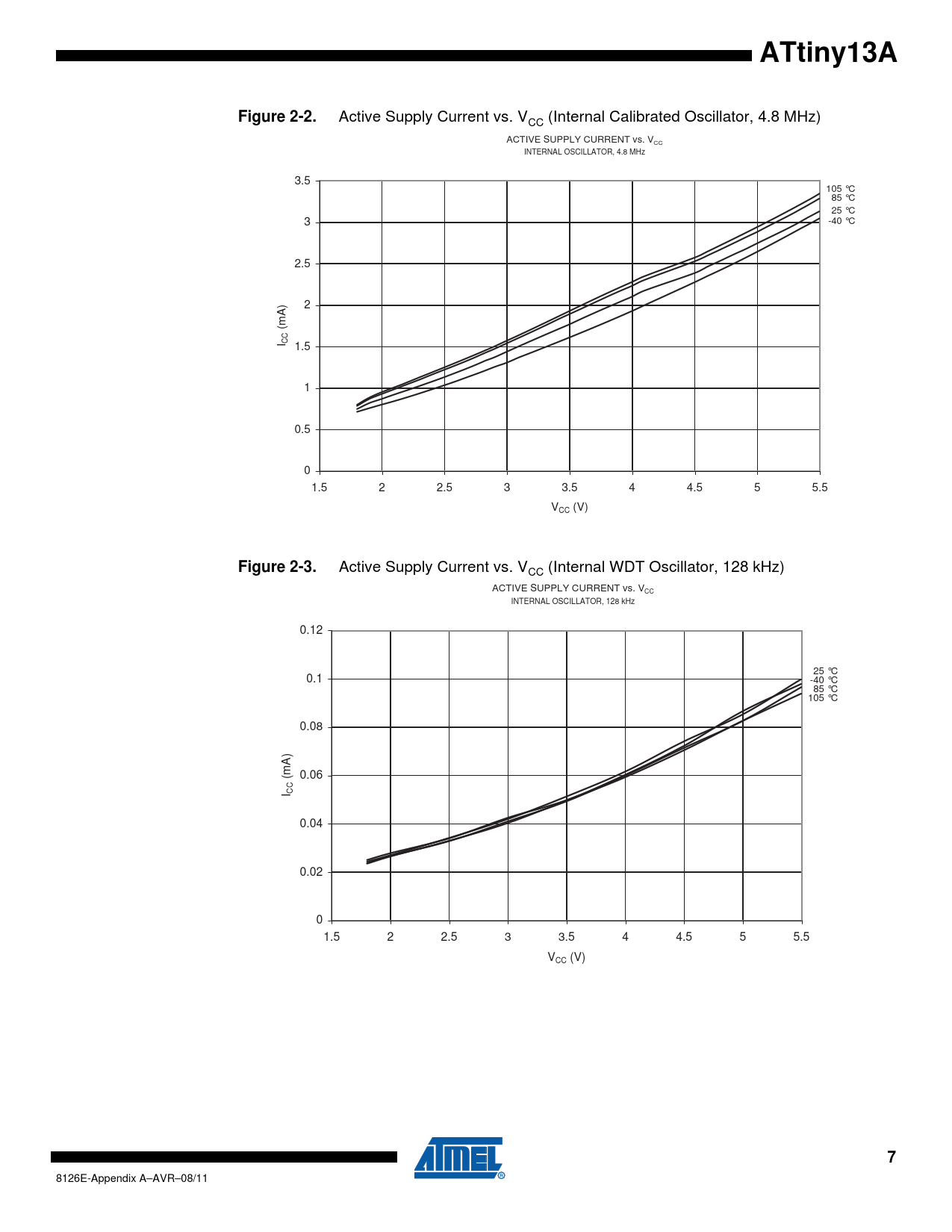

Active Supply Current vs. V (Internal Calibrated Oscillator, 4.8 MHz) CC ACTIVE SUPPLY CURRENT vs. VCC INTERNAL OSCILLATOR, 4.8 MHz 3.5 105 °C 85 °C 25 °C 3 -40 °C 2.5 2 (mA) I CC 1.5 1 0.5 0 1.5 2 2.5 3 3.5 4 4.5 5 5.5 VCC (V)
Figure 2-3.
Active Supply Current vs. V (Internal WDT Oscillator, 128 kHz) CC ACTIVE SUPPLY CURRENT vs. VCC INTERNAL OSCILLATOR, 128 kHz 0.12 25 °C 0.1 -40 °C 85 °C 105 °C 0.08 0.06 (mA) I CC 0.04 0.02 0 1.5 2 2.5 3 3.5 4 4.5 5 5.5 VCC (V)
