Datasheet ATtiny4, ATtiny5, ATtiny9, ATtiny10. Appendix A. Specification at 125C (Microchip) - 9
| Manufacturer | Microchip |
| Description | 8-bit AVR Microcontroller with 512/1024 Bytes In-System Programmable Flash |
| Pages / Page | 34 / 9 — ATtiny4/5/9/10. Figure 2-2. Figure 2-3 |
| File Format / Size | PDF / 1.2 Mb |
| Document Language | English |
ATtiny4/5/9/10. Figure 2-2. Figure 2-3
Model Line for this Datasheet
Text Version of Document

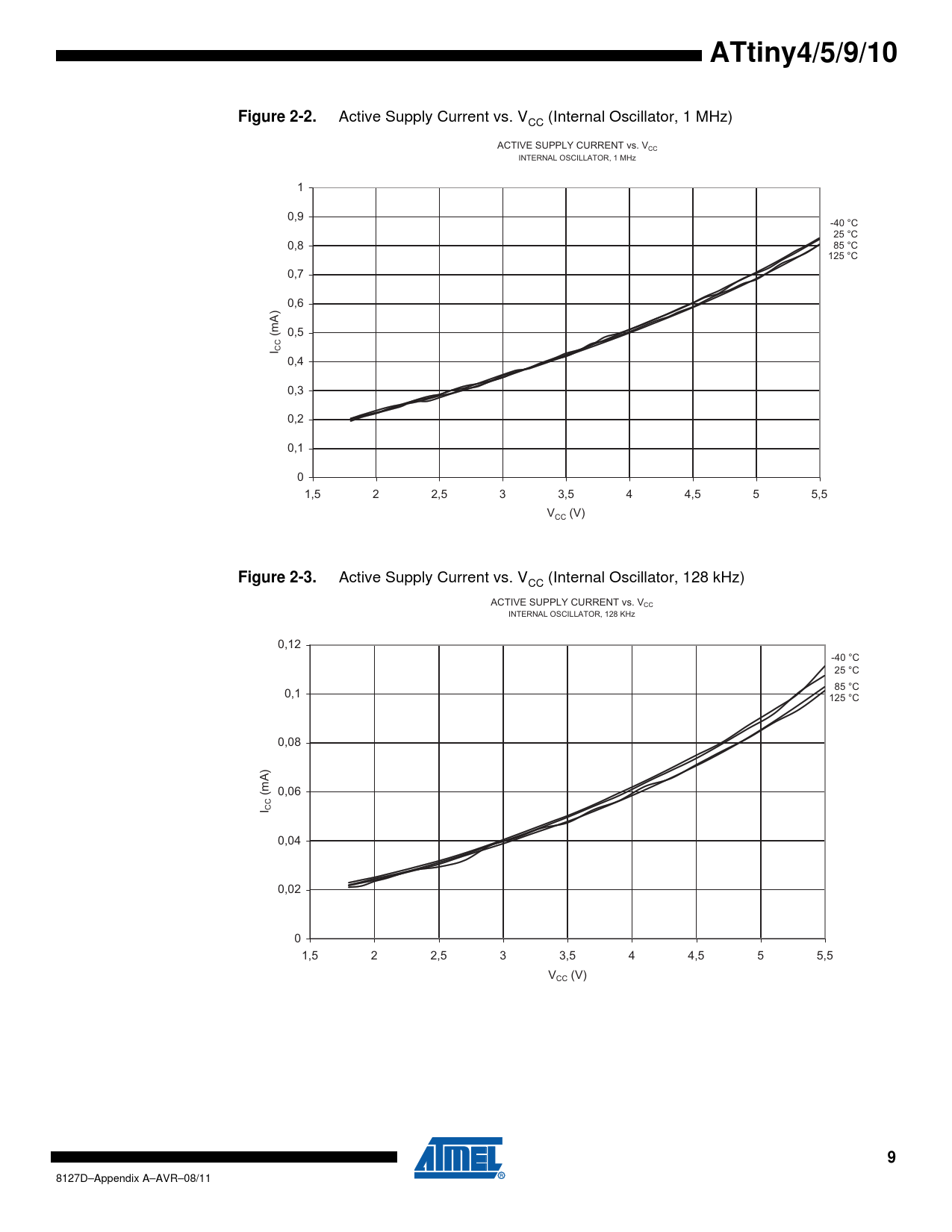

ATtiny4/5/9/10 Figure 2-2.
Active Supply Current vs. V (Internal Oscillator, 1 MHz) CC ACTIVE SUPPLY CURRENT vs. VCC INTERNAL OSCILLATOR, 1 MHz 1 0,9 -40 °C 25 °C 0,8 85 °C 125 °C 0,7 0,6 0,5 (mA) I CC 0,4 0,3 0,2 0,1 0 1,5 2 2,5 3 3,5 4 4,5 5 5,5 VCC (V)
Figure 2-3.
Active Supply Current vs. V (Internal Oscillator, 128 kHz) CC ACTIVE SUPPLY CURRENT vs. VCC INTERNAL OSCILLATOR, 128 KHz 0,12 -40 °C 25 °C 85 °C 0,1 125 °C 0,08 0,06 (mA) I CC 0,04 0,02 0 1,5 2 2,5 3 3,5 4 4,5 5 5,5 VCC (V)
