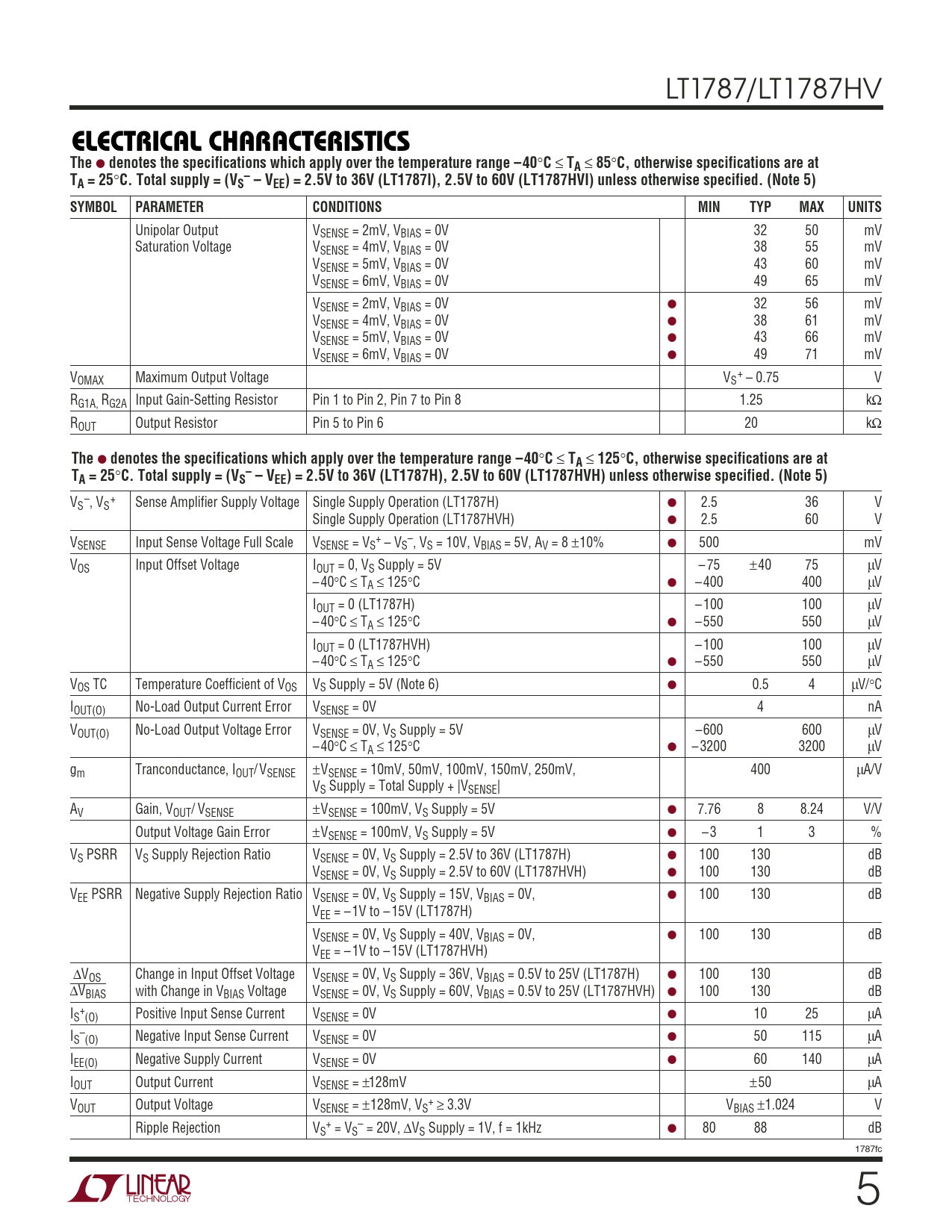

LT1787/LT1787HV
ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the temperature range –40
°
C
≤
TA
≤
85
°
C, otherwise specifications are at T – A = 25
°
C. Total supply = (VS – VEE) = 2.5V to 36V (LT1787I), 2.5V to 60V (LT1787HVI) unless otherwise specified. (Note 5) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
Unipolar Output VSENSE = 2mV, VBIAS = 0V 32 50 mV Saturation Voltage VSENSE = 4mV, VBIAS = 0V 38 55 mV VSENSE = 5mV, VBIAS = 0V 43 60 mV VSENSE = 6mV, VBIAS = 0V 49 65 mV VSENSE = 2mV, VBIAS = 0V ● 32 56 mV VSENSE = 4mV, VBIAS = 0V ● 38 61 mV VSENSE = 5mV, VBIAS = 0V ● 43 66 mV VSENSE = 6mV, VBIAS = 0V ● 49 71 mV V + OMAX Maximum Output Voltage VS – 0.75 V RG1A, RG2A Input Gain-Setting Resistor Pin 1 to Pin 2, Pin 7 to Pin 8 1.25 kΩ ROUT Output Resistor Pin 5 to Pin 6 20 kΩ
