| Manufacturer | Microchip |
| Description | The MIC7111 is a micropower operational amplifier featuring rail-to-rail input and output performance in Micrel's IttyBitty SOT-23-5 package |
| Pages / Page | 12 / 8 — Micrel, Inc. MIC7111 AC Electrical Characteristics (10V) |
| File Format / Size | PDF / 610 Kb |
| Document Language | English |

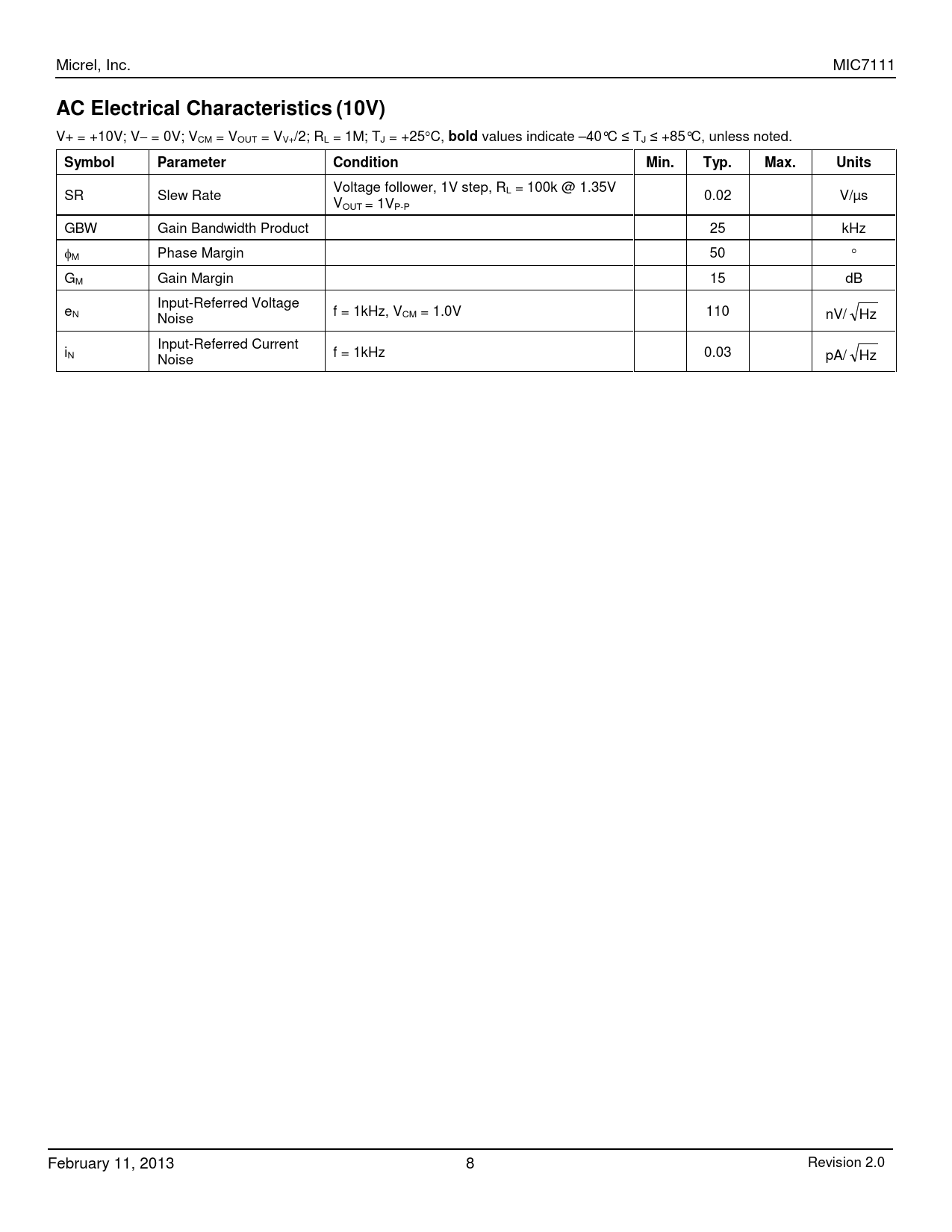

Micrel, Inc. MIC7111 AC Electrical Characteristics (10V)
Model Line for this Datasheet
Text Version of Document
Micrel, Inc. MIC7111 AC Electrical Characteristics (10V)
V+ = +10V; V− = 0V; VCM = VOUT = VV+/2; RL = 1M; TJ = +25°C, bold values indicate –40°C ≤ TJ ≤ +85°C, unless noted.
Symbol Parameter Condition Min. SR Slew Rate Voltage follower, 1V step, RL = 100k @ 1.35V
VOUT = 1VP-P GBW Typ. Max. Units 0.02 V/µs Gain Bandwidth Product 25 kHz φM Phase Margin 50 ° GM Gain Margin 15 dB eN Input-Referred Voltage
Noise f = 1kHz, VCM = 1.0V 110 nV/ Hz iN Input-Referred Current
Noise f = 1kHz 0.03 pA/ Hz February 11, 2013 8 Revision 2.0
