MCP6271/1R/2/3/4/5 1.1 Test Circuits
The test circuits used for the DC and AC tests are shown in Figure 1-2 and Figure 1-3. The bypass capacitors are laid out according to the rules discussed in
Section 4.7 “Supply Bypass”
. VDD 1 µF V 0.1 µF IN R V N OUT
MCP627X
CL RL R V G RF DD/2 VL

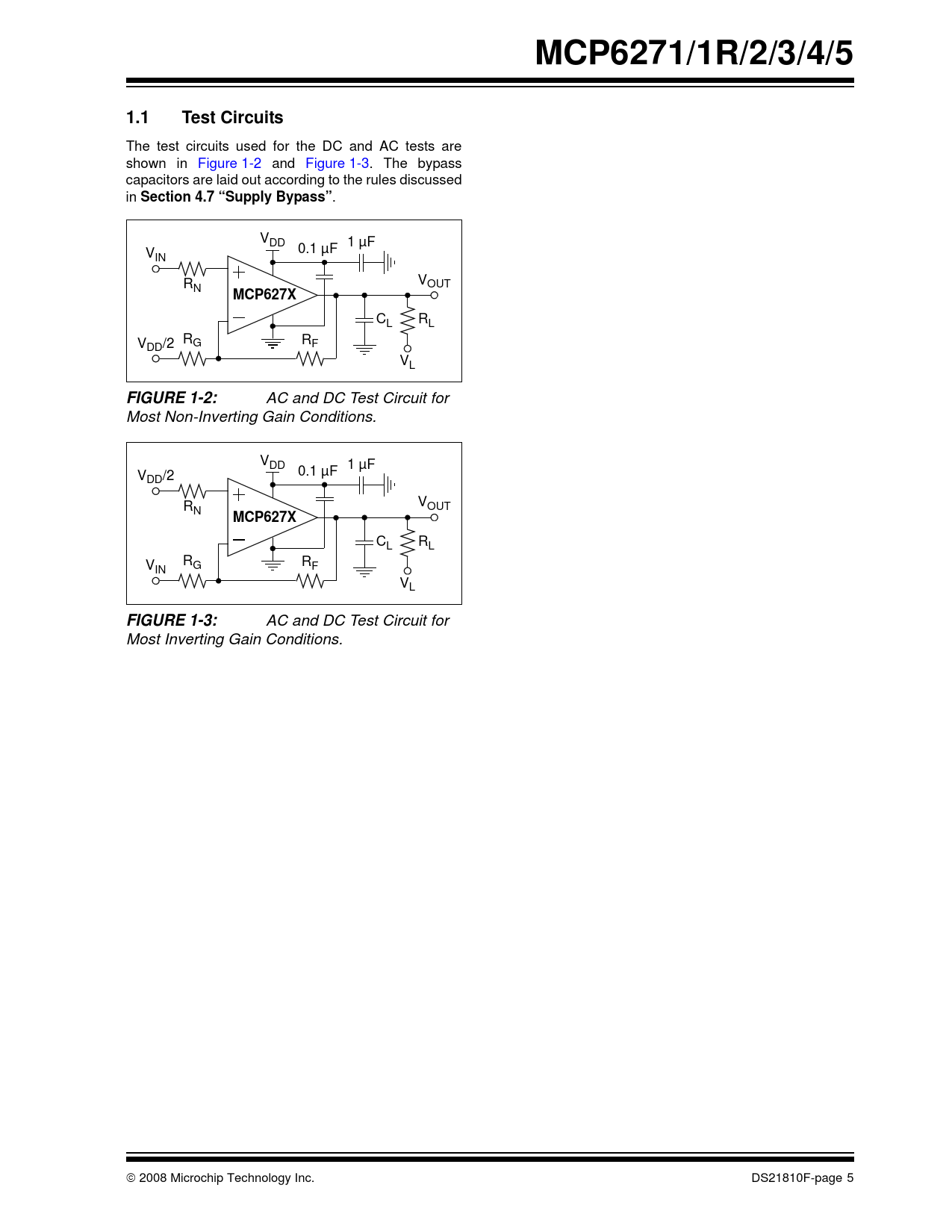

FIGURE 1-2:
AC and DC Test Circuit for Most Non-Inverting Gain Conditions. VDD 1 µF V 0.1 µF DD/2 R V N OUT
MCP627X
CL RL R V G RF IN VL
FIGURE 1-3:
