Datasheet MIC920 (Micrel) - 9
| Manufacturer | Micrel |
| Description | 80MHz Low-Power SC-70 Op Amp |
| Pages / Page | 11 / 9 — Large Signal Response. Large Signal Reponse |
| File Format / Size | PDF / 1.3 Mb |
| Document Language | English |
Large Signal Response. Large Signal Reponse
Text Version of Document
MIC920 Micrel, Inc.

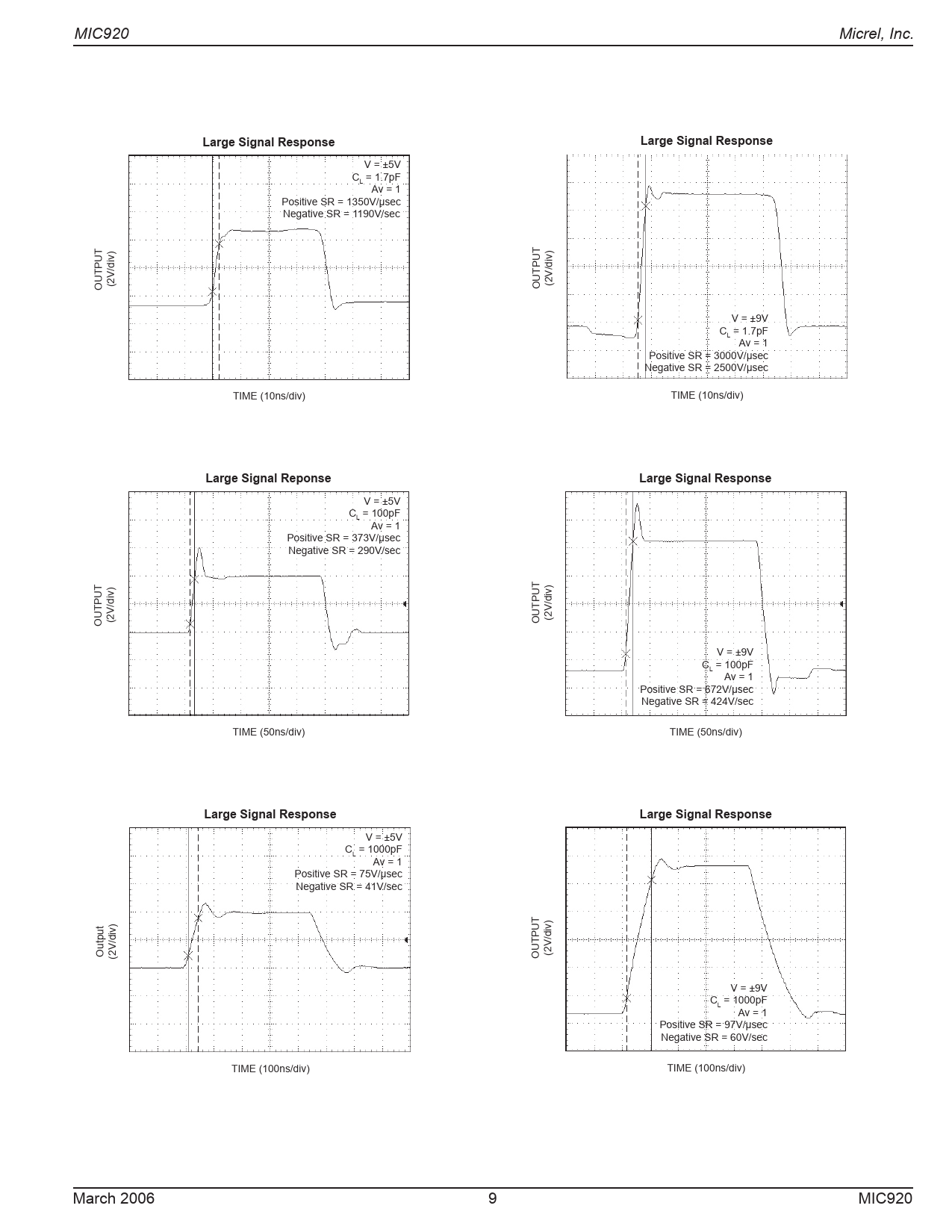

Large Signal Response Large Signal Response
V = ±5V C = 1.7pF L Av = 1 Positive SR = 1350V/µsec Negative SR = 1190V/sec OUTPUT (2V/div) OUTPUT (2V/div) V = ±9V C = 1.7pF L Av = 1 Positive SR = 3000V/µsec Negative SR = 2500V/µsec TIME (10ns/div) TIME (10ns/div)
Large Signal Reponse Large Signal Response
V = ±5V C = 100pF L Av = 1 Positive SR = 373V/µsec Negative SR = 290V/sec OUTPUT (2V/div) OUTPUT (2V/div) V = ±9V C = 100pF L Av = 1 Positive SR = 672V/µsec Negative SR = 424V/sec TIME (50ns/div) TIME (50ns/div)
Large Signal Response Large Signal Response
V = ±5V C = 1000pF L Av = 1 Positive SR = 75V/µsec Negative SR = 41V/sec Output (2V/div) OUTPUT (2V/div) V = ±9V C = 1000pF L Av = 1 Positive SR = 97V/µsec Negative SR = 60V/sec TIME (100ns/div) TIME (100ns/div) March 2006 9 MIC920
