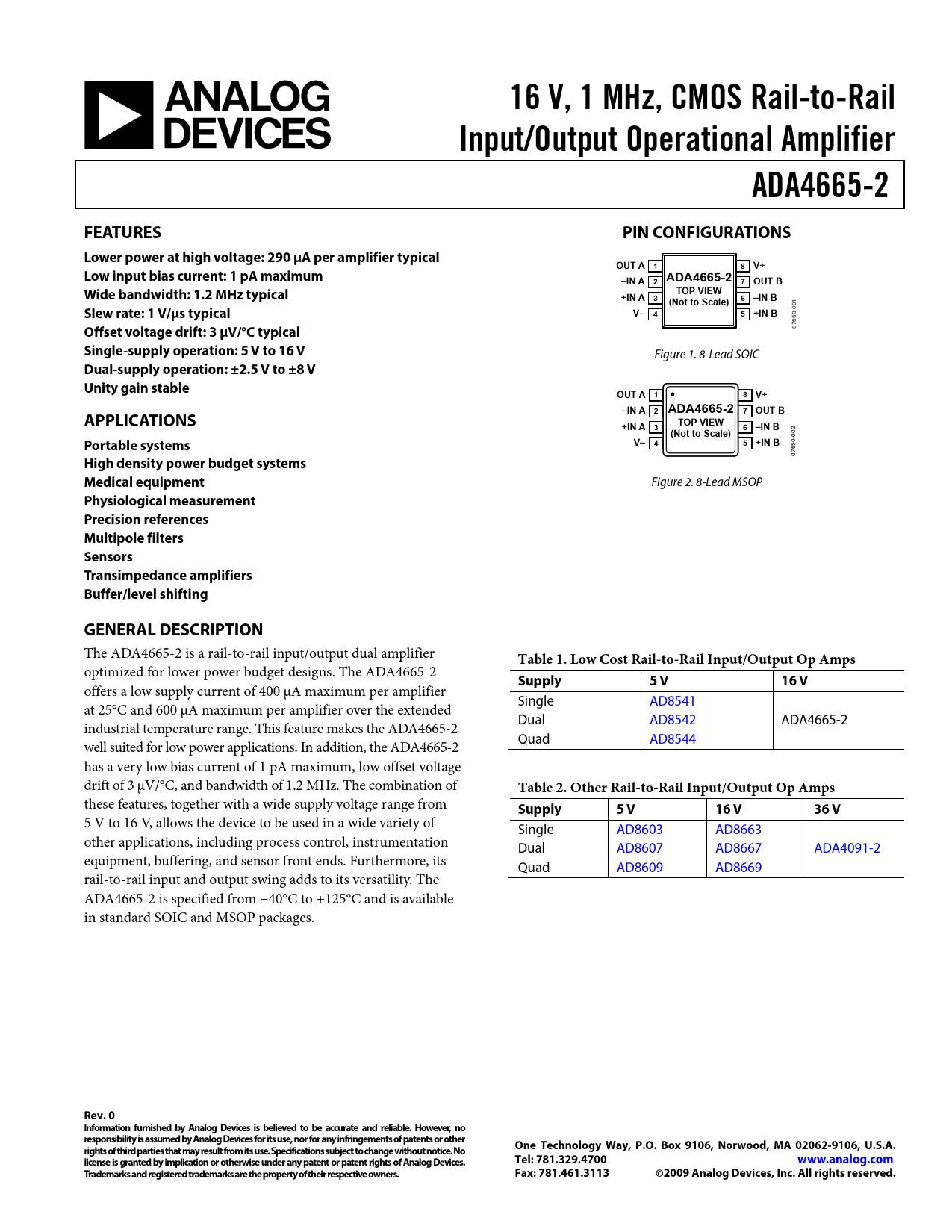

16 V, 1 MHz, CMOS Rail-to-Rail. Input/Output Operational Amplifier. ADA4665-2. FEATURES. PIN CONFIGURATIONS
Text Version of Document
16 V, 1 MHz, CMOS Rail-to-Rail Input/Output Operational Amplifier ADA4665-2 FEATURES PIN CONFIGURATIONS Lower power at high voltage: 290 μA per amplifier typical OUT A 1 8 V+ Low input bias current: 1 pA maximum –IN A 2 ADA4665-2 7 OUT B TOP VIEW Wide bandwidth: 1.2 MHz typical +IN A 3 (Not to Scale) 6 –IN B
01 0
Slew rate: 1 V/μs typical V– 4 5 +IN B
0- 765
Offset voltage drift: 3 μV/°C typical
0
Single-supply operation: 5 V to 16 V
Figure 1. 8-Lead SOIC
Dual-supply operation: ±2.5 V to ±8 V Unity gain stable OUT A 1 8 V+ –IN A 2 ADA4665-2 7 OUT B APPLICATIONS TOP VIEW +IN A 3 6 –IN B (Not to Scale)
02 0
Portable systems V– 4
0-
5 +IN B
65 07
High density power budget systems Medical equipment
Figure 2. 8-Lead MSOP
Physiological measurement Precision references Multipole filters Sensors Transimpedance amplifiers Buffer/level shifting GENERAL DESCRIPTION
The ADA4665-2 is a rail-to-rail input/output dual amplifier
Table 1. Low Cost Rail-to-Rail Input/Output Op Amps
optimized for lower power budget designs. The ADA4665-2
Supply 5 V 16 V
offers a low supply current of 400 μA maximum per amplifier Single AD8541 at 25°C and 600 μA maximum per amplifier over the extended Dual AD8542 ADA4665-2 industrial temperature range. This feature makes the ADA4665-2 Quad AD8544 well suited for low power applications. In addition, the ADA4665-2 has a very low bias current of 1 pA maximum, low offset voltage drift of 3 μV/°C, and bandwidth of 1.2 MHz. The combination of
Table 2. Other Rail-to-Rail Input/Output Op Amps
these features, together with a wide supply voltage range from
Supply 5 V 16 V 36 V
5 V to 16 V, allows the device to be used in a wide variety of Single AD8603 AD8663 other applications, including process control, instrumentation Dual AD8607 AD8667 ADA4091-2 equipment, buffering, and sensor front ends. Furthermore, its Quad AD8609 AD8669 rail-to-rail input and output swing adds to its versatility. The ADA4665-2 is specified from −40°C to +125°C and is available in standard SOIC and MSOP packages.
