| Manufacturer | Analog Devices |
| Description | 300 MHz, 1 mA Current Feedback Amplifier |
| Pages / Page | 17 / 6 — Typical Performance Characteristics–AD8011. 20mV. 5ns. 4V STEP. 2V STEP. … |
| Revision | C |
| File Format / Size | PDF / 251 Kb |
| Document Language | English |
Typical Performance Characteristics–AD8011. 20mV. 5ns. 4V STEP. 2V STEP. 800mV. 10ns. 6.5. G = +2. 6.4. VIN = 100mV p-p. RL = 1k. 6.3. RF = 1k
Model Line for this Datasheet
AD8011
Text Version of Document

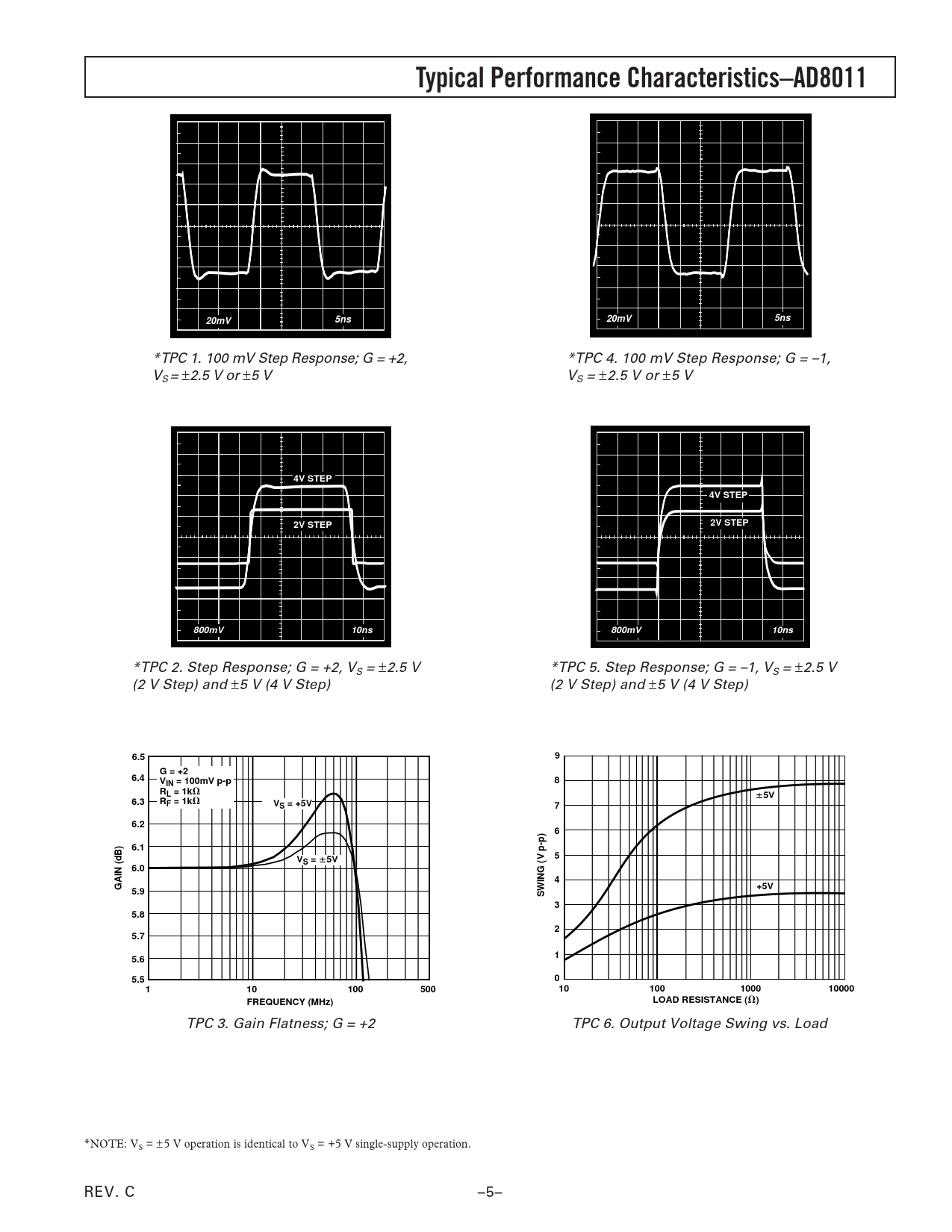

Typical Performance Characteristics–AD8011 20mV 5ns 20mV 5ns
*TPC 1. 100 mV Step Response; G = +2, *TPC 4. 100 mV Step Response; G = –1, VS = ±2.5 V or ±5 V VS = ±2.5 V or ±5 V
4V STEP 4V STEP 2V STEP 2V STEP 800mV 10ns 800mV 10ns
*TPC 2. Step Response; G = +2, VS = ±2.5 V *TPC 5. Step Response; G = –1, VS = ±2.5 V (2 V Step) and ±5 V (4 V Step) (2 V Step) and ±5 V (4 V Step)
6.5 9 G = +2 6.4 VIN = 100mV p-p 8 RL = 1k
⍀ ⴞ
5V 6.3 RF = 1k
⍀
VS = +5V 7 6.2 6 6.1 V 5 S =
ⴞ
5V 6.0 4 GAIN (dB) +5V 5.9 SWING (V p-p) 3 5.8 2 5.7 5.6 1 5.5 0 1 10 100 500 10 100 1000 10000 FREQUENCY (MHz) LOAD RESISTANCE (
⍀
)
TPC 3. Gain Flatness; G = +2 TPC 6. Output Voltage Swing vs. Load *NOTE: VS = ± 5 V operation is identical to VS = +5 V single-supply operation. REV. C –5– Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM PRODUCT DESCRIPTION SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS MAXIMUM POWER DISSIPATION ORDERING GUIDE Typical Performance Characteristics THEORY OF OPERATION DC GAIN CHARACTERISTICS AC TRANSFER CHARACTERISTICS DRIVING CAPACITIVE LOADS OPTIMIZING FLATNESS INCREASING BW AT HIGH GAINS DRIVING A SINGLE-SUPPLY A/D CONVERTER LAYOUT CONSIDERATIONS OUTLINE DIMENSIONS Revision History
