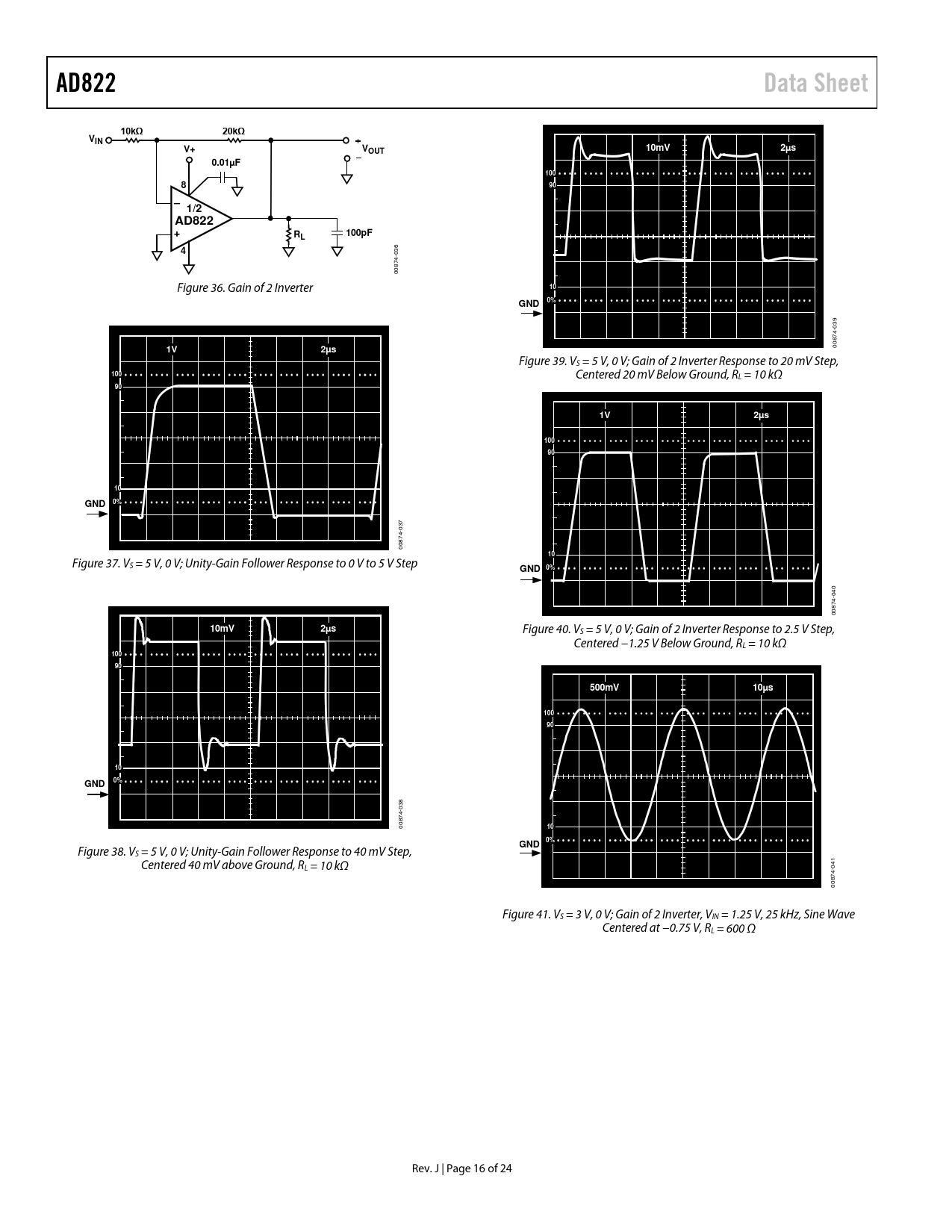

AD822 Data Sheet 10kΩ 20kΩ VIN V+ VOUT 10mV 2µs 0.01µF 100 8 90 – 1/2 AD822 + R 100pF L 4
036 00874- Figure 36. Gain of 2 Inverter
10 GND 0%
039
1V 2µs
00874- Figure 39. VS = 5 V, 0 V; Gain of 2 Inverter Response to 20 mV Step,
100
Centered 20 mV Below Ground, RL = 10 kΩ
90 1V 2µs 100 90 10 GND 0%
037 00874-
10
Figure 37. VS = 5 V, 0 V; Unity-Gain Follower Response to 0 V to 5 V Step
GND 0%
040 00874-
10mV 2µs
Figure 40. VS = 5 V, 0 V; Gain of 2 Inverter Response to 2.5 V Step, Centered −1.25 V Below Ground, RL = 10 kΩ
100 90 500mV 10µs 100 90 10 GND 0%
038 00874-
10 0%
Figure 38. V
GND
S = 5 V, 0 V; Unity-Gain Follower Response to 40 mV Step, Centered 40 mV above Ground, RL = 10 kΩ 041 00874- Figure 41. VS = 3 V, 0 V; Gain of 2 Inverter, VIN = 1.25 V, 25 kHz, Sine Wave Centered at −0.75 V, RL = 600 Ω Rev. J | Page 16 of 24 Document Outline FEATURES APPLICATIONS CONNECTION DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE MAXIMUM POWER DISSIPATION ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION INPUT CHARACTERISTICS OUTPUT CHARACTERISTICS SINGLE-SUPPLY VOLTAGE TO FREQUENCY CONVERTER LOW DROPOUT BIPOLAR BRIDGE DRIVER OUTLINE DIMENSIONS ORDERING GUIDE
